Specifications

Product Type

RCBO

Brand

ABB

Series

DS202CR

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 440 V
Power Loss 3.28 W	Rated Current (In) 0.416667	Rated Frequency 50 / 60 Hz
Rated Voltage (Ur) 240 V	Trip Curve C	Terminal Type Failsafe cage terminal(Top / Bottom)
Residual Current Type Type APR	Rated Residual Current 30 mA	Electrical Life 10000
Mechanical Life 20000

Mounting

DIN rail

Depth 72 mm	Height 86 mm	Weight 0.22 kg
Width 36 mm	Width in No. of Modular Spacing 2	Pole Width 18 mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 3	Storage Temperature -40…+70°C
Operating Temperature -25 … 55 °C	IP Rating IP2X, IP4X

Standards and Approvals

IEC 60898-1, IEC/EN 60664-1

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6 kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

10 kA

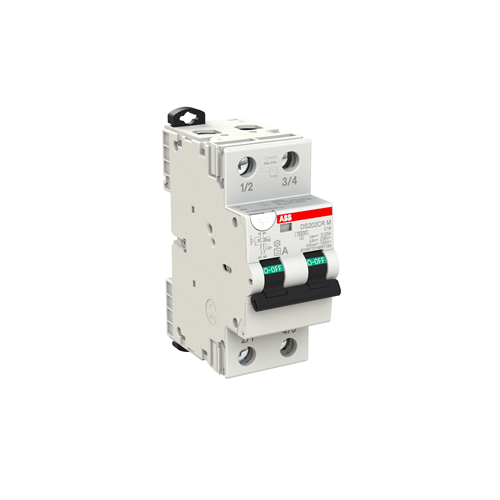

ABB DS202CRC10APR30 Residual Current Breaker with Overcurrent 6 kA 2-P 30mA 10A C-Curve
