Specifications

Product Type

RCBO

Brand

ABB

Series

DS201

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 500V
Power Loss 2.6W	Rated Current (In) 6A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 240V	Trip Curve C	Terminal Type Screw Terminals
Residual Current Type Type A	Rated Residual Current 30mA	Electrical Life 10000
Mechanical Life 20000

Conductor Cross Section Flexible 1 x 0.75-16mm², 2 x 0.75-6mm²	Conductor Cross Section Solid Core 1 x 0.75-25mm², 2 x 0.75-10mm²	Housing Type Insulation group I - II, RAL 7035
Mounting DIN rail

Depth 69mm	Height 85mm	Weight 0.2kg
Width 35mm	Width in No. of Modular Spacing 2	Pole Width 18mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 2	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating IP2X, IP4X

Standards and Approvals

IEC 60898-1, IEC/EN 60664-1

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

10kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

15kA

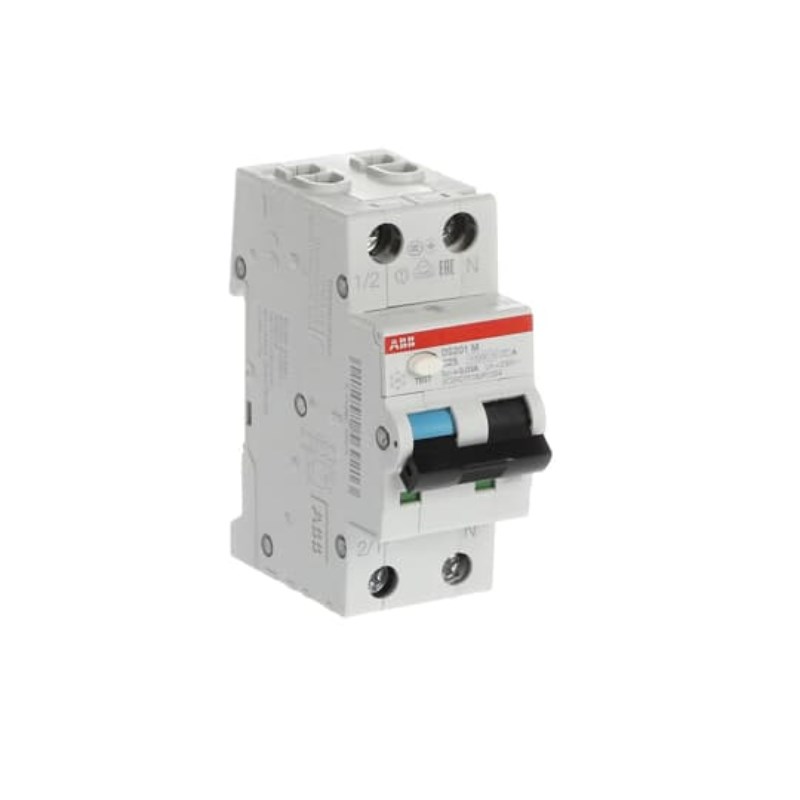

ABB DS201MC6A30110V Residual Current Circuit Breaker with Overcurrent Protection 10 kA 2-P 30mA 6A C-Curve TypeA IP40
