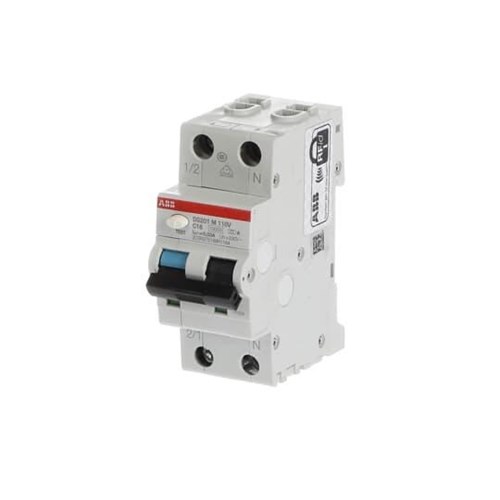

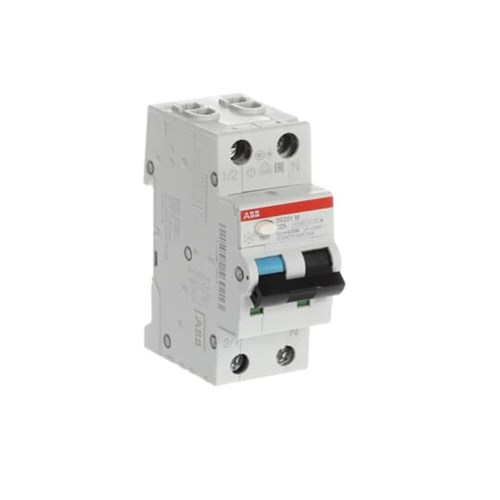

ABB DS201MC32A30110V Residual Current Circuit Breaker with Overcurrent Protection 10 kA 2-P 30mA 32A C-Curve TypeA IP40

Product Code: DS201MC32A30110V

  • Rated current of 32 A, perfect for various applications.
  • High breaking capacity of 10kA ensures safety.
  • IP20/IP40 protection against solid objects and dust.
  • Compact design: 35 mm width, DIN Rail mountable.
  • Compliant with IEC 61009 standards for reliability.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Circuit Breakers With Overcurrent Protection RCBO
Brand
ABB
Series
DS201 M

Electrical

No. of Poles (Total)
1P+N
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V AC
Power Loss
Average per Pole 5.0W
Rated Current (In)
32A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230/240V AC
Trip Curve
C
Terminal Type
Screw Terminals
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Mechanical

Conductor Cross Section Flexible
0.75mm² to 16mm²
Housing Type
Insulation group I - II, RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.2kg
Width
35mm
Width in No. of Modular Spacing
2

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
2
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP20; IP40

Safety, Standards & Compliance

Standards and Approvals
IEC 61009-1; IEC 61009-2-1

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009
15kA
