Specifications

Product Type

Residual Current Circuit Breakers With Overcurrent Protection RCBO

Brand

ABB

Series

DS201 M

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 500V AC
Power Loss Average per Pole 2.3W	Rated Current (In) 16A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 230/240V AC	Trip Curve C	Terminal Type Screw Terminals
Residual Current Type Type A	Rated Residual Current 10mA	Electrical Life 10000 cycle
Mechanical Life 20000 cycle

Conductor Cross Section Flexible

0.75mm² to 16mm²

Housing Type

Insulation group I - II, RAL 7035

Depth 69mm	Height 85mm	Weight 0.2kg
Width 35mm	Width in No. of Modular Spacing 2

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 2	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating IP20; IP40

Standards and Approvals

IEC/EN 61009-1; IEC/EN 61009-2-1

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

15kA

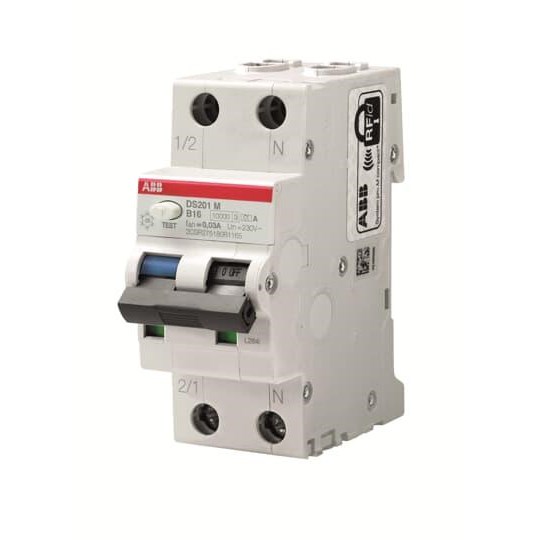

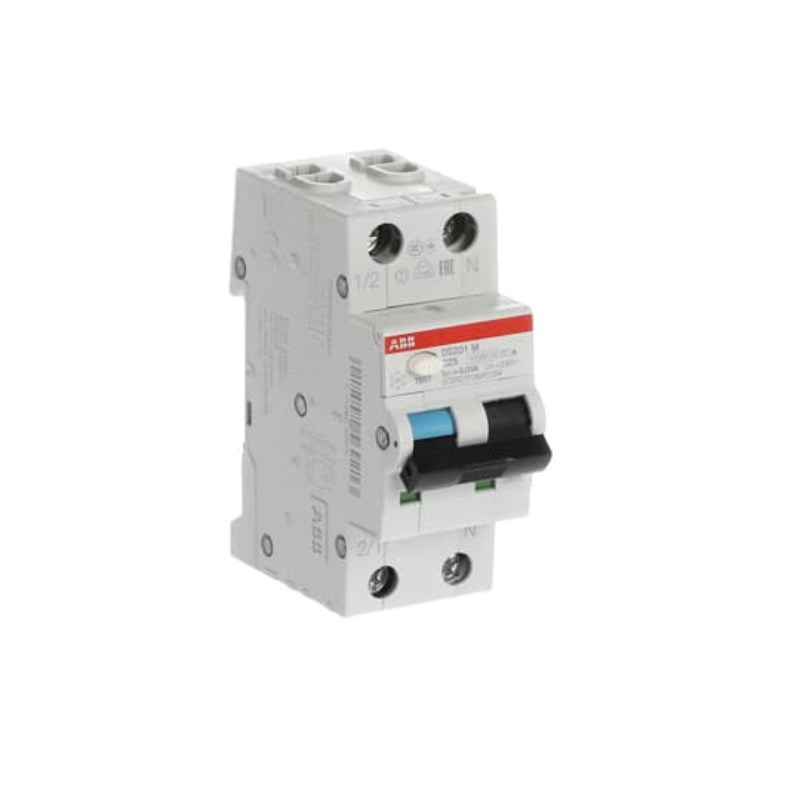

ABB DS201MC16A10 Residual Current Circuit Breaker with Overcurrent Protection 10 kA 2-P 10mA 16A C-Curve TypeA IP40
