Specifications

Product Type

Residual Current Circuit Breakers With Overcurrent Protection RCBO

Brand

ABB

Series

DS201 M

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 500 V AC
Power Loss Average per Pole 1.2 W	Rated Current (In) 0.416667	Rated Frequency 50/60 Hz
Rated Voltage (Ur) 230/240 V AC	Trip Curve C	Terminal Type Screw Terminals
Residual Current Type Type A APR	Rated Residual Current 30 mA	Electrical Life 10000 cycle
Mechanical Life 20000 cycle

Conductor Cross Section Flexible

0.75 to 16 mm²

Housing Type

Insulation group I - II, RAL 7035

Depth 69 mm	Height 85 mm	Weight 0.2 kg
Width 35 mm	Width in No. of Modular Spacing 2

Rated Surrounding Temperature Without Derating 30 °C	Pollution Degree 2	Storage Temperature -40 to 70 °C
Operating Temperature -25 to 55 °C	IP Rating IP20; IP40

Standards and Approvals

IEC/EN 61009-1; IEC/EN 61009-2-1

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

15 kA

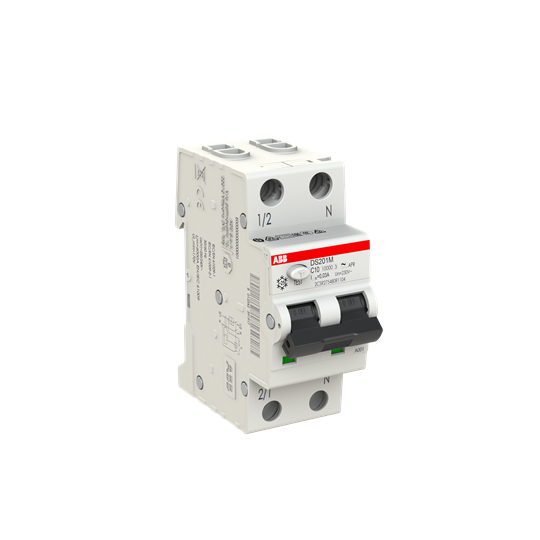

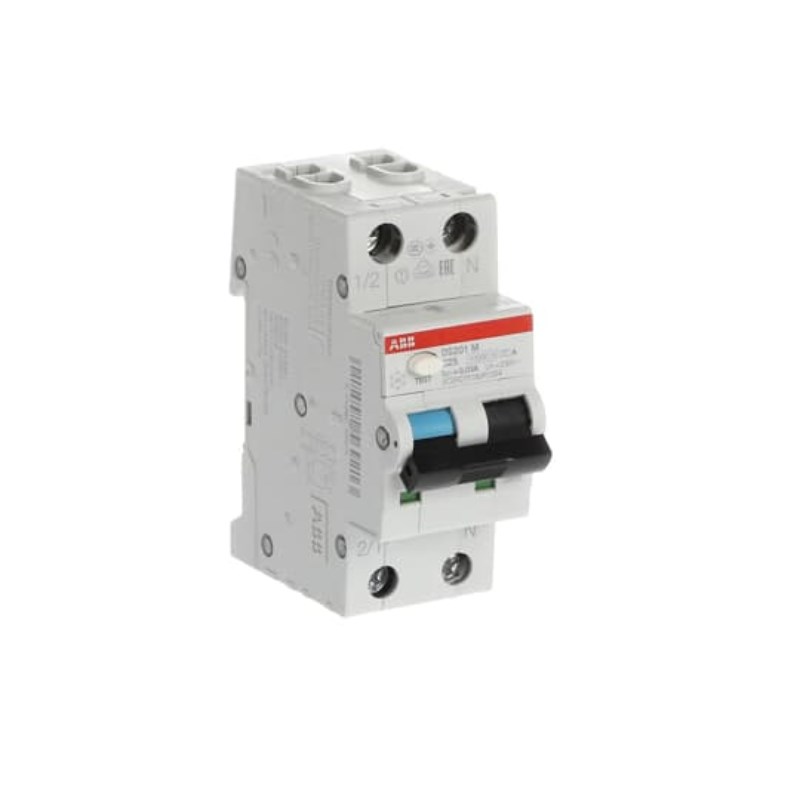

ABB DS201MC10APR30 Residual Current Circuit Breaker with Overcurrent Protection 10 kA 2-P 30mA 10A C-Curve TypeA IP40
