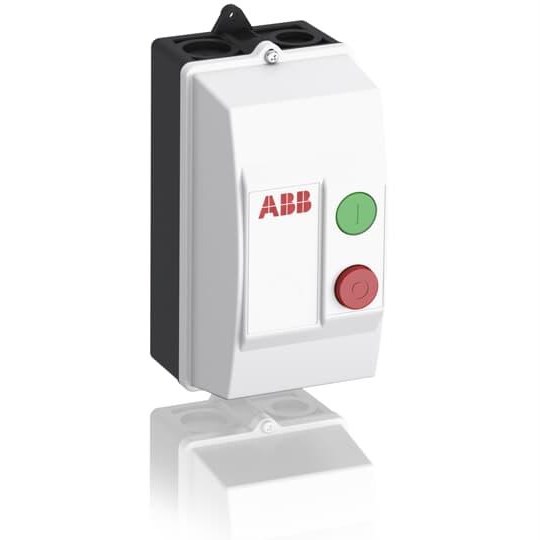

ABB DRAF16-11S Enclosed DOL Starter 9kW 24-60VAC 18A

Product Code: DRAF16-11S

  • Enclosed DOL starter for 24-60 VAC systems
  • Supports up to 18 A and 9 kW power
  • IP3 pollution degree, NEMA 4X rated
  • Compact size: 107x230x131 mm dimensions
  • Versatile cable entry at 20 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed DOL Starter
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
50 Hz 24 ... 60 V 60 Hz 24 ... 60 V DC Operation 20 ... 60 V
Rated Operational Current AC-1 <= 690V (Ie)
30 A
Rated Operational Current AC-3 400V (Ie)
18 A
Rated Operational Current AC-3 690V (Ie)
10.5 A
Rated Operational Power AC-3 400V (Pe)
7.5 kW
Rated Operational Power AC-3 690V (Pe)
9 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
1

Dimensions & Physical Data

Depth
131 mm
Height
230 mm
Weight
0.82 kg
Width
107 mm

Safety, Standards & Compliance

Standards and Approvals
CE Declaration of Conformity; UKCA Declaration of Conformity; UL Certificate; UL Listing Card

Description

<p>Enclosed Direct-On-Line starter with AF contactor for controlling 3-phase asynchronous motors up to 690 V AC.</p>
