Specifications

Product Type

Enclosed Direct-On-Line Starter

Brand

ABB

No. of Poles (Total) 3P	Rated Control Supply Voltage (Us) 100–250 V	Rated Operational Current AC-1 <= 690V (Ie) (690 V) 40 °C 28 A
Rated Operational Current AC-3 400V (Ie) (415 V) 60 °C 12 A	Rated Operational Current AC-3 690V (Ie) (690 V) 60 °C 9 A	Rated Operational Power AC-3 400V (Pe) (415 V) 5.5 kW
Rated Operational Power AC-3 690V (Pe) (690 V) 7.5 kW	Rated Frequency 50 / 60 Hz	No. of Auxiliary Contacts (NO/NC) 1 NO + 0 NC

Depth 131 mm	Height 230 mm	Weight 0.82 kg
Width 107 mm

Standards and Approvals

IEC 60947-4-1

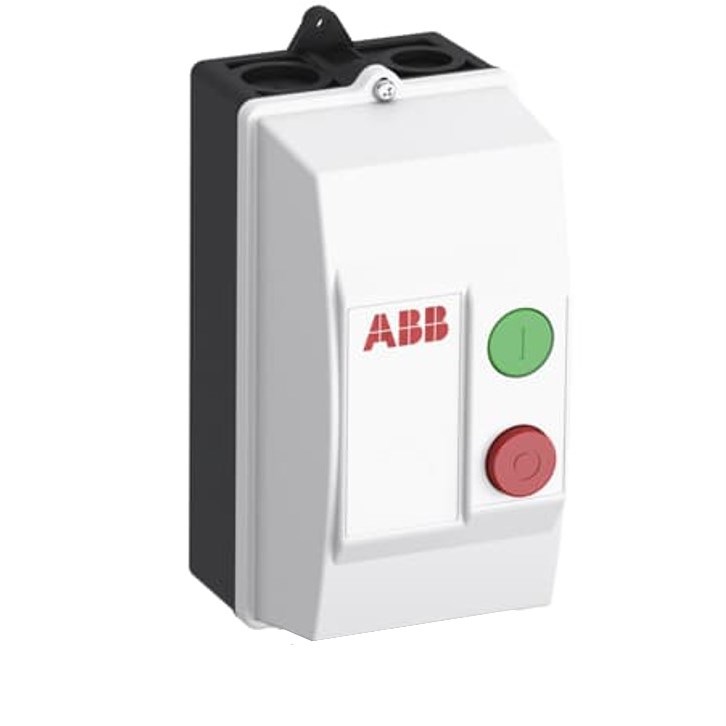

ABB DRAF12-13N Enclosed DOL Starter 5.5kW 100-250VAC Coil 12A
