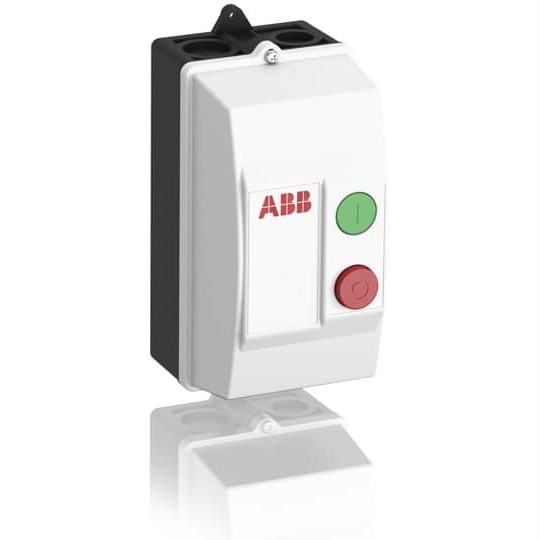

ABB DRAF12-11S Enclosed DOL Starter 5.5kW 24-60VAC 12A

Product Code: DRAF12-11S

  • Enclosed DOL Starter for motor control
  • Rated Voltage: 24-60 VAC, Current: 12 A
  • Supports flexible and rigid connections
  • Compact size: 107 x 230 x 131 mm
  • Durable plastic housing, NEMA 4X rated
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed DOL Starter
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
50 Hz 24 ... 60 V 60 Hz 24 ... 60 V DC Operation 20 ... 60 V
Rated Operational Current AC-1 <= 690V (Ie)
28 A
Rated Operational Current AC-3 400V (Ie)
12 A
Rated Operational Current AC-3 690V (Ie)
9 A
Rated Operational Power AC-3 400V (Pe)
5.5 kW
Rated Operational Power AC-3 690V (Pe)
7.5 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
1

Dimensions & Physical Data

Depth
131 mm
Height
230 mm
Weight
0.82 kg
Width
107 mm

Safety, Standards & Compliance

Standards and Approvals
CE Declaration of Conformity; UKCA Declaration of Conformity; UL Certificate; UL Listing Card

Description

<p>Enclosed Direct-On-Line starter with AF contactor for controlling 3-phase asynchronous motors up to 690 V AC.</p>
