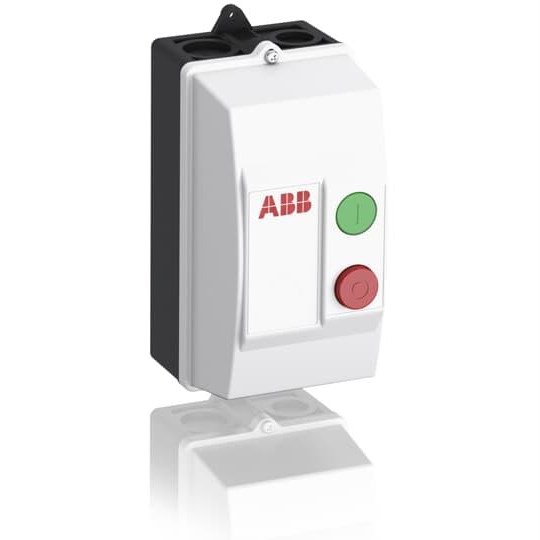

ABB DRAF09-11S Enclosed DOL Starter 4kW 24-60VAC 9A

Product Code: DRAF09-11S

  • Enclosed DOL starter, 24-60 VAC, 9 A
  • Compact size: 107x230x131 mm
  • Operates in -25 to 60°C environments
  • IP3 and NEMA 4X rated for protection
  • Supports flexible and rigid wiring
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed DOL Starter
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
50 Hz 24 ... 60 V 60 Hz 24 ... 60 V DC Operation 20 ... 60 V
Rated Operational Current AC-1 <= 690V (Ie)
25 A
Rated Operational Current AC-3 400V (Ie)
9 A
Rated Operational Current AC-3 690V (Ie)
7 A
Rated Operational Power AC-3 400V (Pe)
4 kW
Rated Operational Power AC-3 690V (Pe)
5.5 kW
Rated Frequency
50 / 60 Hz
No. of Poles
3P
No. of Auxiliary Contacts
1

Dimensions & Physical Data

Depth
131 mm
Height
230 mm
Weight
0.82 kg
Width
107 mm

Safety, Standards & Compliance

Standards and Approvals
CE Declaration of Conformity; UKCA Declaration of Conformity; UL Certificate; UL Listing Card

Description

<p>Enclosed Direct-On-Line starter with AF contactor for controlling 3-phase asynchronous motors up to 690 V AC.</p>
