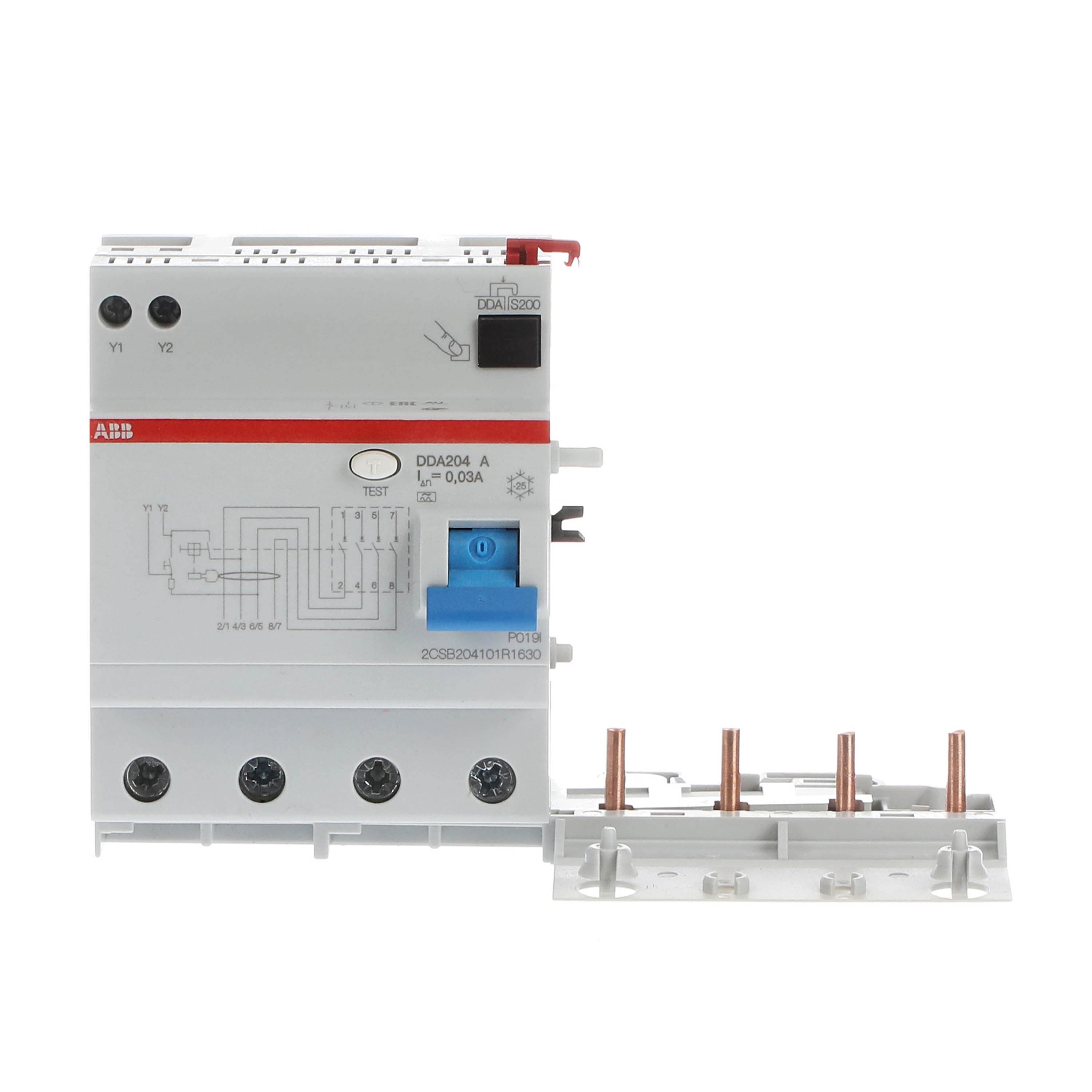

ABB DDA204A63/0.03 Residual Current Device Block 4-P 230/400VAC 63A 30mA

Product Code: DDA204A63/0.03

  • Rated current of 63 A for reliable protection
  • Supports 230/400 VAC with Type A residual current
  • Compact design: 105mm x 96mm x 76mm
  • Meets IEC/EN 61009 standards for safety
  • Operates in -25 to 55°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Device Block Dda200
Brand
ABB

Electrical

No. of Poles (Total)
4P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 500 V
Suitable For
MCBs S200 series and S300P
Power Loss
Total 7.6W
Rated Current (In)
63A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230/400V AC
Terminal Type
Bi-directional cylinder-lift terminal
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Mechanical

Conductor Cross Section Flexible
0mm² to 25mm²
Conductor Cross Section Solid Core
0mm² to 25mm²

Dimensions & Physical Data

Depth
69mm
Height
93mm
Weight
0.395kg
Width
140mm
Width in No. of Modular Spacing
NA

Environmental

Pollution Degree
2
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 50°C
IP Rating
IP4X (housing); IP2X (terminals)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61009-1 Annex G; IEC/EN 61009-2-1
