Specifications

Product Type

Residual Current Device Block Dda200

Brand

ABB

No. of Poles (Total) 4P	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 500 V
Suitable For MCBs S200 series and S300P	Power Loss Total 3W	Rated Current (In) 25A
Rated Frequency 50/60Hz	Rated Voltage (Ur) 230/400V AC	Terminal Type Cage type
Residual Current Type Type A	Rated Residual Current 30mA	Electrical Life 10000 cycle
Mechanical Life 20000 cycle

Conductor Cross Section Flexible

0mm² to 16mm²

Conductor Cross Section Solid Core

0mm² to 16mm²

Depth 69mm	Height 93mm	Weight 0.395kg
Width 105mm	Width in No. of Modular Spacing NA

Pollution Degree 2	Storage Temperature -40°C to 70°C	Operating Temperature -25°C to 50°C
IP Rating IP4X (housing); IP2X (terminals)

Standards and Approvals

IEC/EN 61009-1 Annex G; IEC/EN 61009-2-1

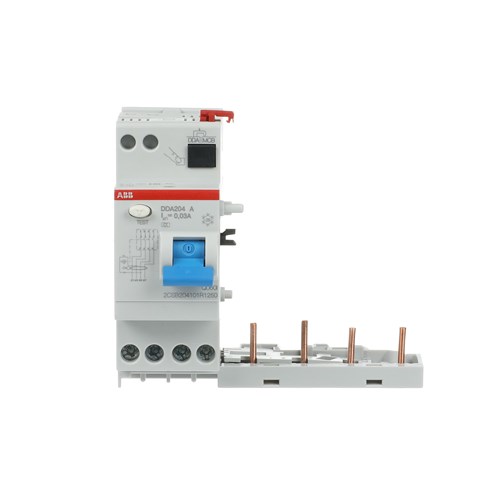

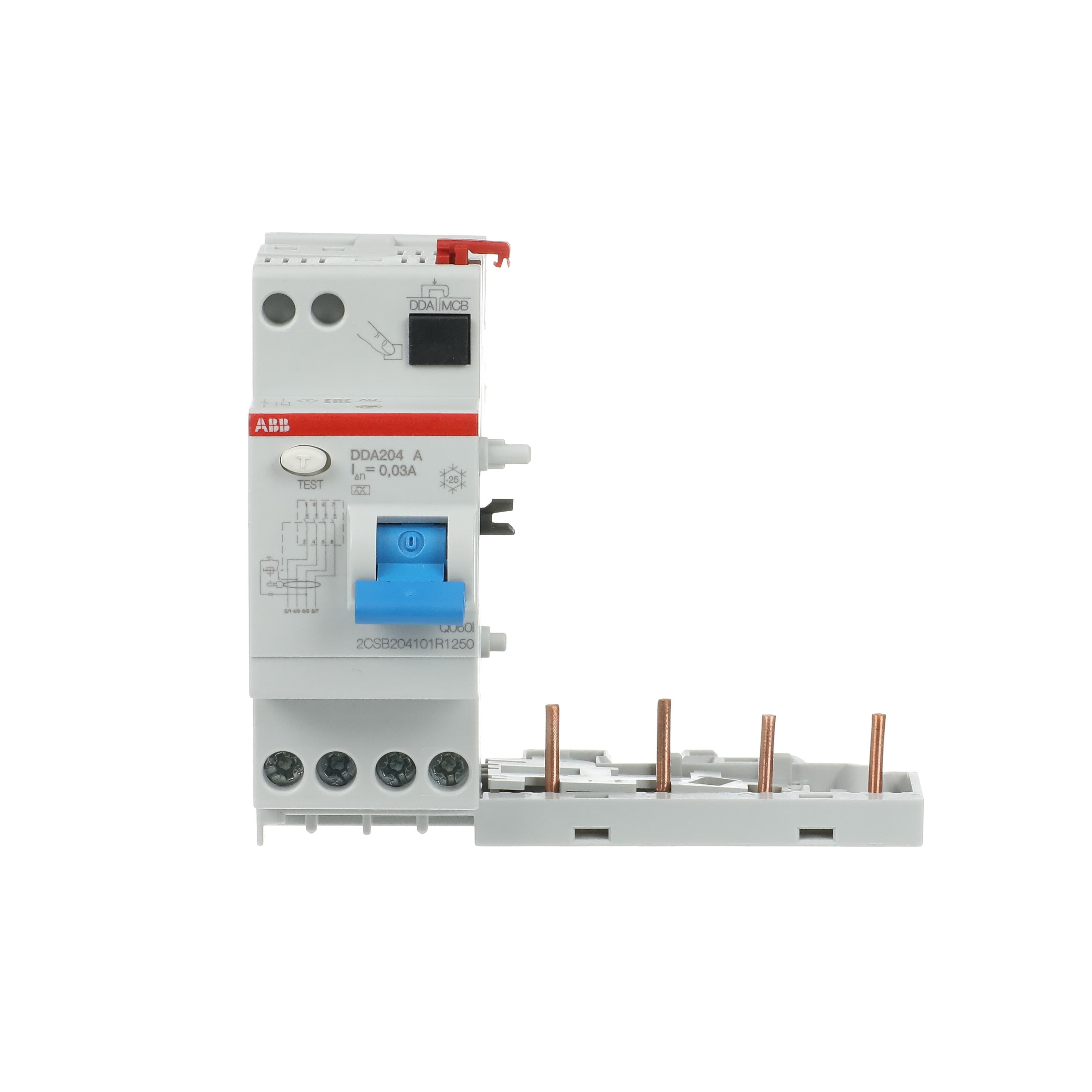

ABB DDA204A25 Residual Current Device Block 4-P 230/400VAC 25A 30mA
