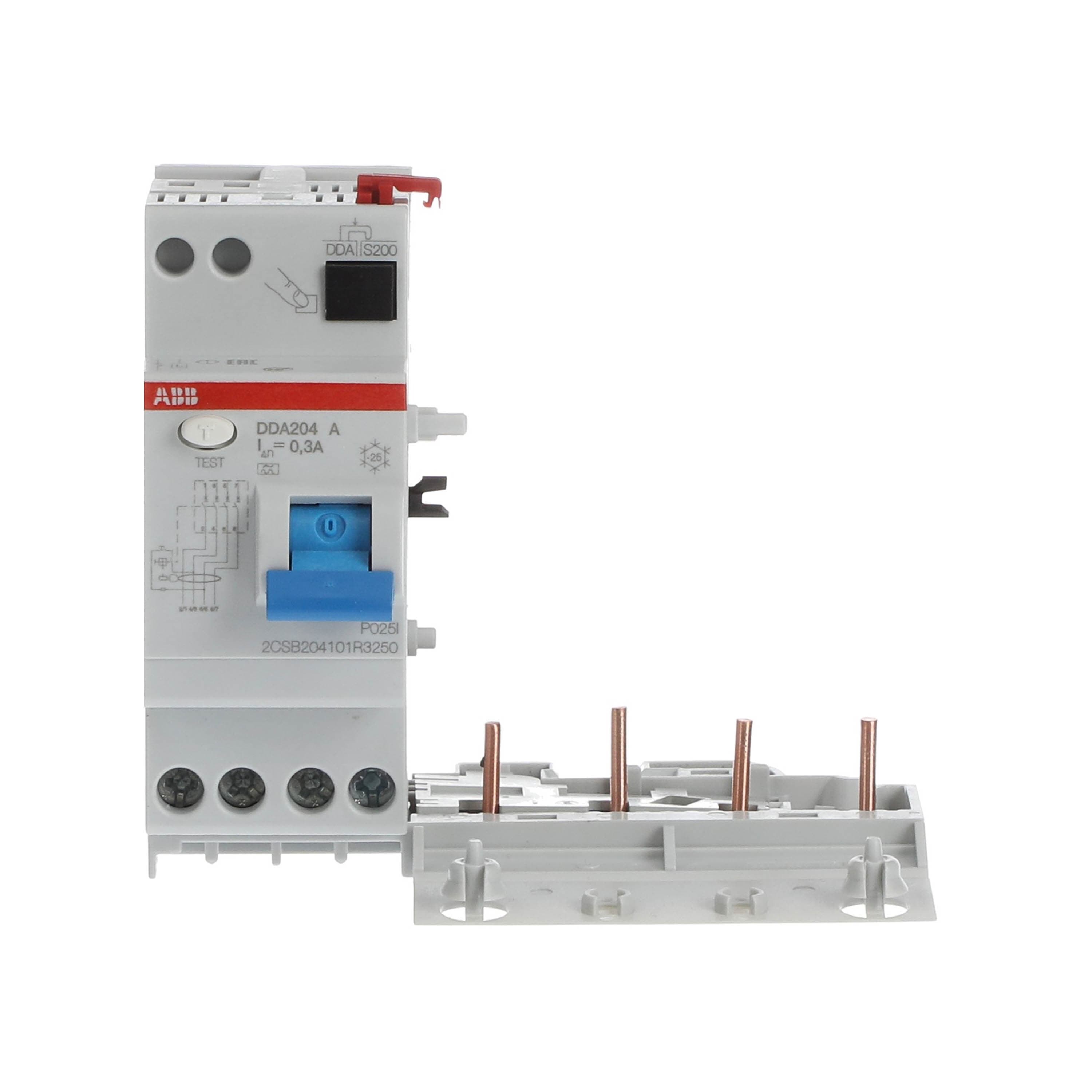

ABB DDA204A25/0.3 Residual Current Device Block 4-P 230/400VAC 25A 300mA

Product Code: DDA204A25/0.3

  • RCD Block with 25A rated current
  • Supports 230/400 VAC voltage
  • 4-pole design for versatile use
  • Meets IEC/EN 61009 standards
  • Operates in -25 to 55°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Device Block
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V
Suitable For
Residential, commercial, industrial
Power Loss
Total 3W
Rated Current (In)
25A
Rated Frequency
50Hz to 60Hz
Rated Voltage (Ur)
230/400V
Terminal Type
bi-directional cylinder-lift
Residual Current Type
Type A
Rated Residual Current
100mA
Electrical Life
10000 cycle
Mechanical Life
20000

Mechanical

Conductor Cross Section Flexible
0mm² to 16mm²
Conductor Cross Section Solid Core
0mm² to 16mm²
Housing Type
RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
93mm
Weight
0.395kg
Width
87.5mm

Environmental

Pollution Degree
2
Storage Temperature
-40…+70
Operating Temperature
-25°C to 50°C
IP Rating
IP20,IP40

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61009-1 Ann. G; IEC/EN 61009-2-1
