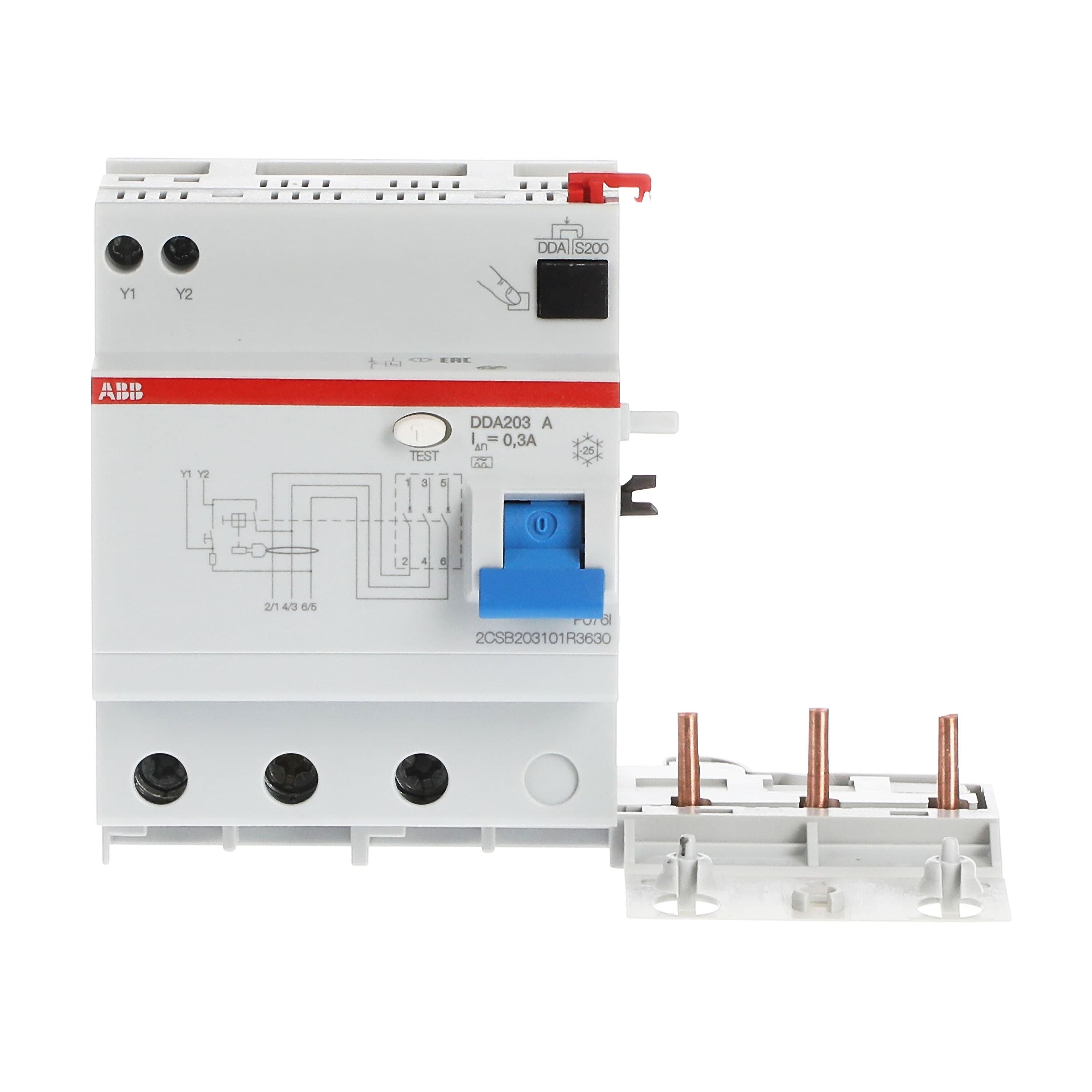

ABB DDA203A63/0.3 Residual Current Device Block 3-P 230/400VAC 63A 300mA

Product Code: DDA203A63/0.3

  • Supports 63 A current, ideal for robust applications
  • Operates at 230/400 VAC with Type A residual current
  • Compact size: 87mm width, 93mm height, 76mm depth
  • High durability with 10,000 electrical cycles
  • Complies with IEC/EN 61009 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Device Block
Brand
ABB

Electrical

No. of Poles (Total)
2P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V
Suitable For
Residential, commercial, industrial
Power Loss
Total 5W
Rated Current (In)
63A
Rated Frequency
50Hz to 60Hz
Rated Voltage (Ur)
230/400V
Terminal Type
bi-directional cylinder-lift
Residual Current Type
Type A
Rated Residual Current
300mA
Electrical Life
10000 cycle
Mechanical Life
20000

Mechanical

Conductor Cross Section Flexible
0mm² to 25mm²
Conductor Cross Section Solid Core
0mm² to 25mm²
Housing Type
RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
93mm
Weight
0.395kg
Width
70mm

Environmental

Pollution Degree
2
Storage Temperature
-40…+70
Operating Temperature
-25°C to 50°C
IP Rating
IP20,IP40

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61009-1 Ann. G; IEC/EN 61009-2-1
