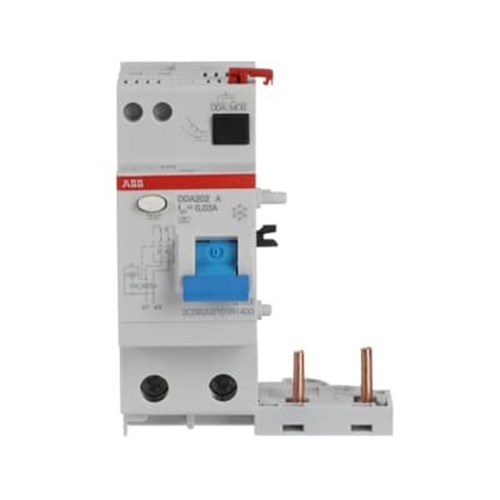

ABB DDA202A40 Residual Current Device Block 2-P 230/400VAC 40A 30mA

Product Code: DDA202A40

  • Rated current of 40 A for reliable protection
  • Suitable for 230/400 VAC systems
  • Electrical durability up to 10,000 cycles
  • Compact size: 70mm width, 93mm height, 76mm depth
  • Operates in -25 to 55°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Device Block
Brand
ABB

Electrical

No. of Poles (Total)
3P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V
Suitable For
Residential, commercial, industrial
Power Loss
Total 7.6W
Rated Current (In)
63A
Rated Frequency
50Hz to 60Hz
Rated Voltage (Ur)
230/400V
Terminal Type
bi-directional cylinder-lift
Residual Current Type
Type A
Rated Residual Current
100mA
Electrical Life
10000 cycle
Mechanical Life
20000

Mechanical

Conductor Cross Section Flexible
0mm² to 25mm²
Housing Type
RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
93mm
Weight
0.325kg
Width
122.5mm

Environmental

Pollution Degree
2
Storage Temperature
-40…+70
Operating Temperature
-25°C to 50°C
IP Rating
IP20,IP40

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61009-1 Ann. G; IEC/EN 61009-2-1

Documents

IPD Product Catalogue V17
