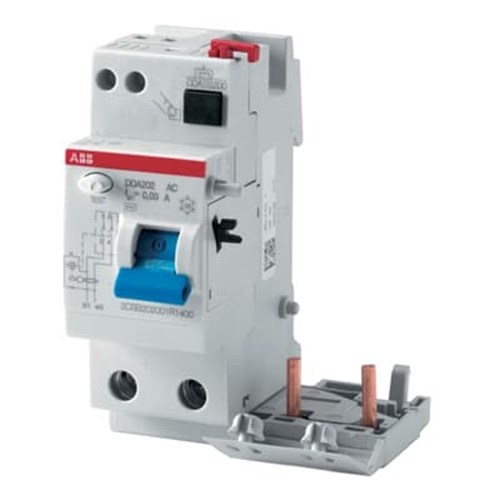

ABB DDA202A40/0.1 Residual Current Device Block 2-P 230/400VAC 40A 100mA

Product Code: DDA202A40/0.1

  • RCD Block with 40 A rated current
  • Supports 230/400 VAC voltage
  • Complies with IEC/EN 61009 standards
  • Operates at -25 to 55°C ambient temp
  • Type A residual current protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Type-2 Surge Arrester
Brand
DEHN
Series
DG M TNC
Application
For TNS systems

Electrical

Max. Backup Fuse
125 A gG
Max. Continuous Operating Voltage (AC/DC)
275 V
No. of Poles (Total)
3
Nominal Voltage
230 / 400 V
Voltage Protection Level Up
≤ 1.5 kV
Maximum Discharge Current Imax (8/20µs)
40 kA
Short Circuit Current Rating
50 kArms
Nominal Discharge Current Inom (8/20µs)
20 kA

Mechanical

Mounting Method
35 mm DIN rails
Terminal Size
max. 1.5 mm2 solid / flexible

Dimensions

Depth
90mm
Height
73mm
Width
54mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20
