Specifications

Product Type

Residual Current Device Block

Brand

ABB

Electrical Endurance 10000 cycle	No. of Poles (Total) 3P	Rated Current (In) 40 A
Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 500 V	Suitable for Residential, commercial, industrial
Power Loss Total 4.8 W	Rated Frequency 50 … 60 Hz	Rated Voltage 230/400 V
Terminal Type bi-directional cylinder-lift	Rated Residual Current 300 mA	Type of Residual Current Type A

Conductor Cross Section Flexible 0...16 mm²	Conductor Cross Section Solid Core 0...16 mm²	Housing Type RAL 7035
Mechanical Endurance 20000

Depth 69 mm	Height 93 mm	Weight 395g
Width 87.5 mm

Pollution Degree 2	Storage Temperature -40…+70	Operating Temperature -25...50 °C
IP Rating IP20,IP40

IEC/EN 61009-1 Ann. G; IEC/EN 61009-2-1

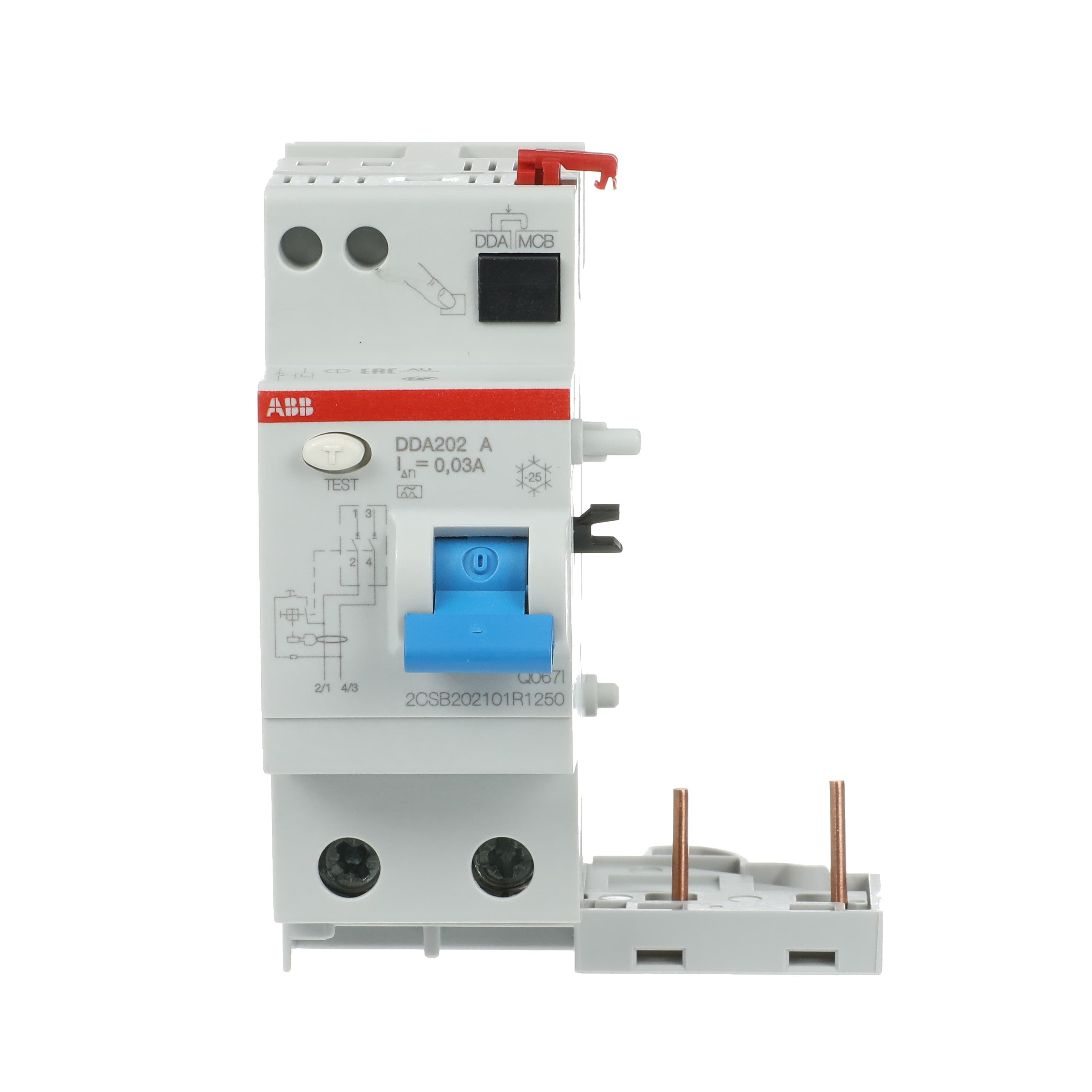

ABB DDA202A25 Residual Current Device Block 2-P 230/400VAC 25A 30mA
