Specifications

Product Type

Residual Current Device Block

Brand

ABB

No. of Poles (Total) 2P	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 500V
Suitable For Residential, commercial, industrial	Power Loss Total 2W	Rated Current (In) 25A
Rated Frequency 50Hz to 60Hz	Rated Voltage (Ur) 230/400V	Terminal Type bi-directional cylinder-lift
Residual Current Type Type A	Rated Residual Current 300mA	Electrical Life 10000 cycle
Mechanical Life 20000

Conductor Cross Section Flexible

0mm² to 25mm²

Conductor Cross Section Solid Core

0mm² to 25mm²

Housing Type

RAL 7035

Depth 69mm	Height 93mm	Weight 0.395kg
Width 70mm

Pollution Degree 2	Storage Temperature -40…+70	Operating Temperature -25°C to 50°C
IP Rating IP2X

Standards and Approvals

IEC/EN 61009-1 Ann. G; IEC/EN 61009-2-1

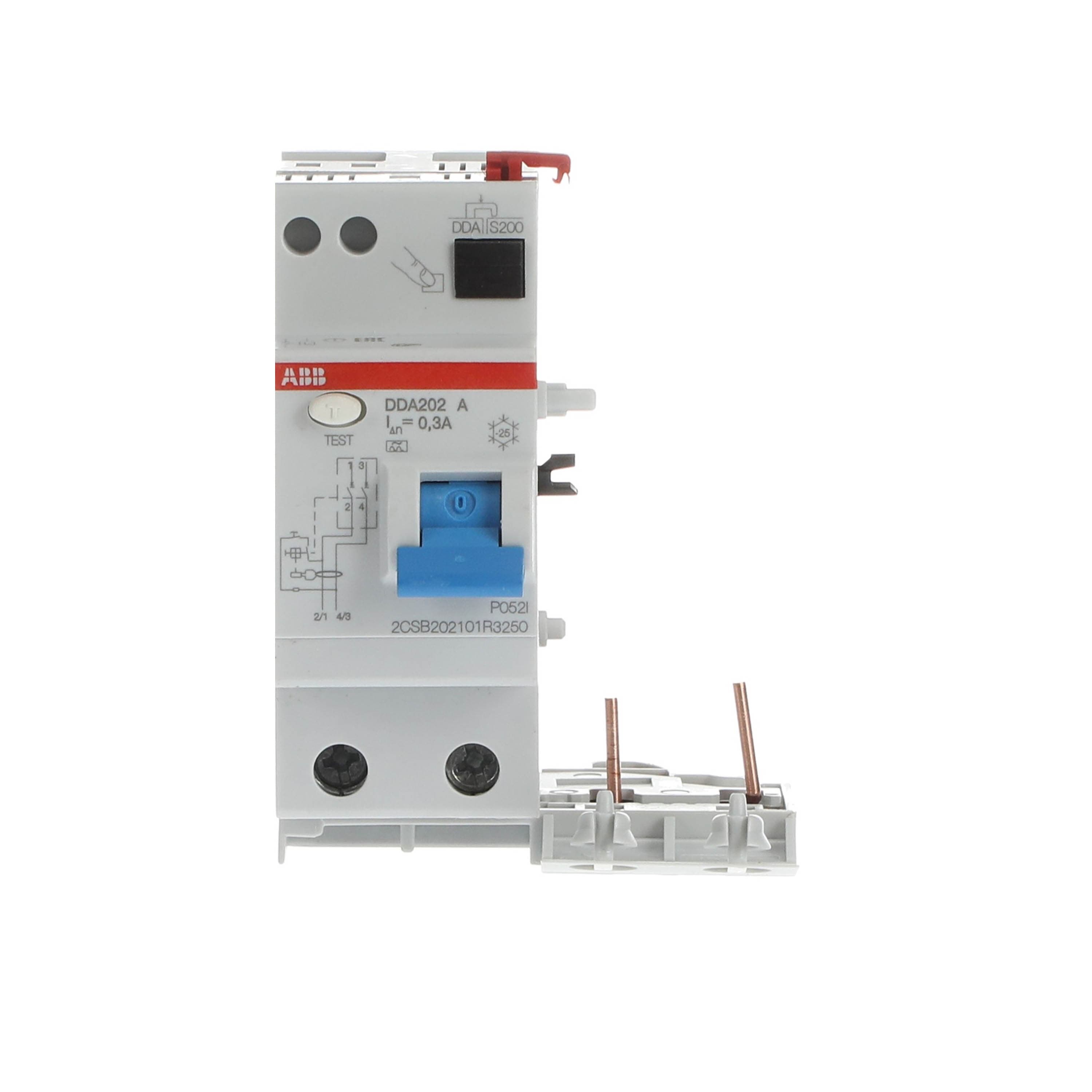

ABB DDA202A25/0.3 Residual Current Device Block 2-P 230/400VAC 25A 300mA
