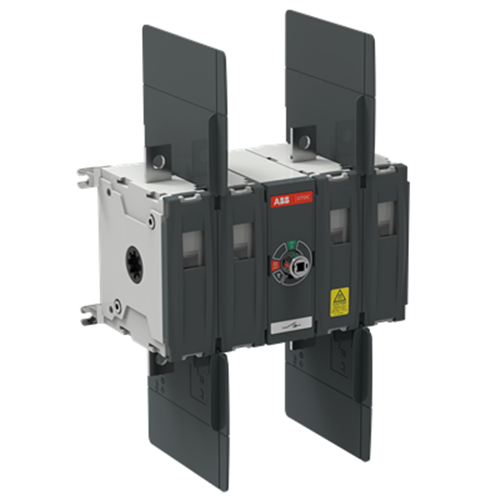

ABB DC SWITCH 250A 1500V DC 4P SWITCH ONLY CENTRE MECHANISM OTDC250GV22

Product Code: OTDC250GV22

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switch - Disconnector
Brand
ABB
Series
OTDC
Application
Solar energy, utilities, industrial automation

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
10kA for 1 s
Power Loss
per pole 7.7...8.4W; total 30.8...33.6W
Rated Current (In)
250A
Special Functions
No
Mechanical Life
10000
No. of Poles
4P

Dimensions & Physical Data

Depth
120mm
Height
165mm
Weight
3kg
Width
224mm

Environmental

Pollution Degree
2
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, -3

Documents

IPD Product Catalogue V17
