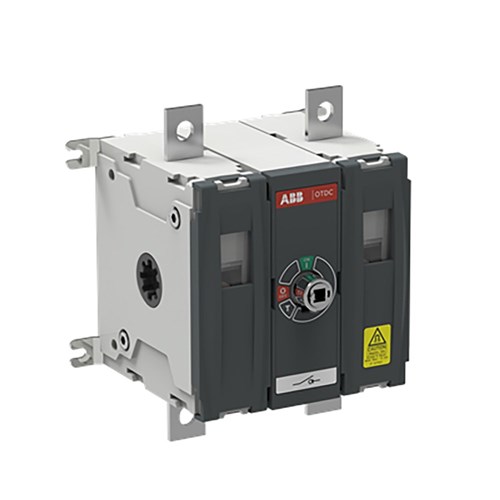

ABB DC SWITCH 160A 1500V DC 2P SWITCH ONLY CENTRE MECHANISM OTDC160GV11

Product Code: OTDC160GV11

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switch - Disconnector
Brand
ABB
Series
OTDC
Application
Solar energy, utilities, industrial automation

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
10kA for 1 s
Power Loss
per pole 3.1...3.5W; total 6.2...7W
Rated Current (In)
160A
Special Functions
No
Mechanical Life
10000
No. of Poles
2P

Dimensions & Physical Data

Depth
120mm
Height
165mm
Weight
1.7kg
Width
146mm

Environmental

Pollution Degree
2
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, -3
