Specifications

Product Type DC Switch - Disconnector	Brand ABB	Series OTDC
Application Solar energy, utilities, industrial automation

Position of Line Terminals Top In - Bottom Out Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 12kV	Rated Insulation Voltage (Ui) 1500V
Rated Operating Voltage 1000V DC	Rated Short Time Withstand Current (Icw) 10kA for 1 s; 5kA for 0.1 s	Power Loss per pole 4W; total 16W
Rated Current (In) 160A	Special Functions No	No. of Poles 4P

Depth 90.5mm	Height 262mm	Weight 2.2kg
Width 185.4mm

Pollution Degree

IP Rating

Front IP20

Standards and Approvals

IEC 60947-1, -3

Included Components

Terminal bolt kit

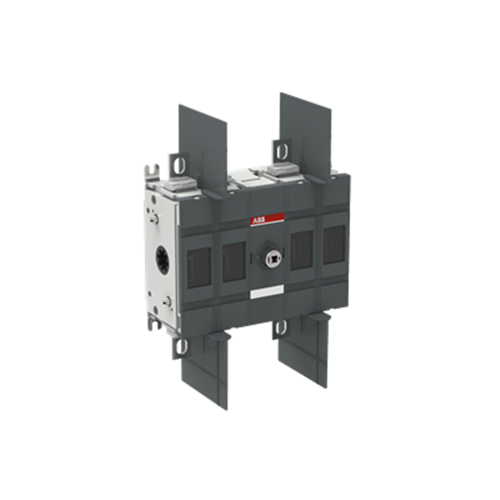

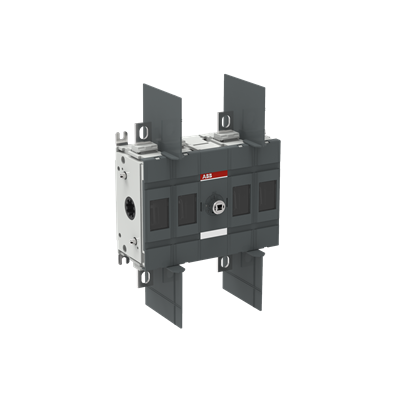

ABB DC SWITCH 160A 1000V DC 4P SWITCH ONLY, CENTRE MECHANISM OTDC160E22
