Specifications

Product Type DC Switch - Disconnector	Brand ABB	Series OTDC
Application Utilities, infrastructure, manufacturing

Position of Line Terminals Top In - Bottom Out Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 12kV	Rated Insulation Voltage (Ui) 1500V
Rated Operating Voltage 1500V DC	Rated Short Time Withstand Current (Icw) 10kA for 1 s; 63kA for 0.1 s	Power Loss per pole 30...32W; total 120...128W
Rated Current (In) 1000A	Special Functions No	Mechanical Life 10000
No. of Poles 4P

Depth 148mm	Height 211mm	Weight 9.7kg
Width 196.2mm

Pollution Degree

IP Rating

Front IP20

Standards and Approvals

IEC 60947-1, -3

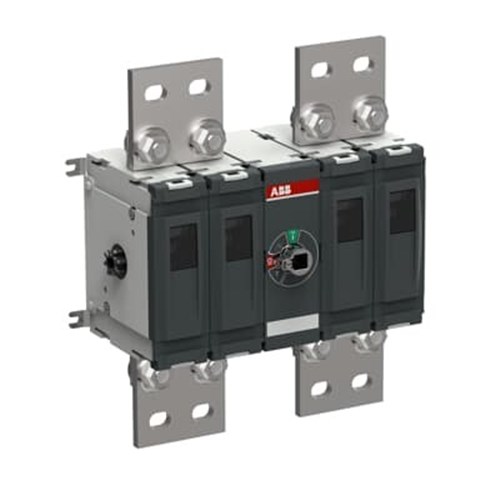

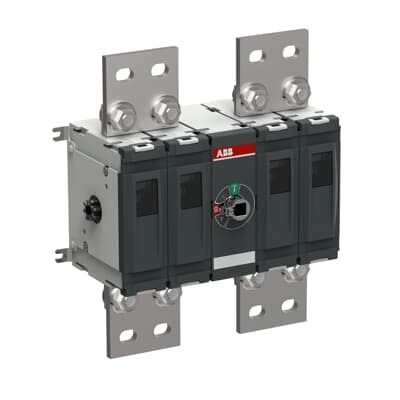

ABB DC SWITCH 1000A 1500V DC 4P SWITCH ONLY, HIGH SHORT CCT CENTRE MECHANISM OTDC1000FV22-ESS
