Specifications

Product Type

Electronic Time Relay

Brand

ABB

Series

CT-D

Rated Control Supply Voltage (Us) 24 to 240 V AC; 24 to 48 V DC	Rated Insulation Voltage (Ui) 300 V	Rated Operational Voltage (Ue) 250 V
Rated Operational Current AC-15 (Ie) 3:00 AM	Timing Range 0.05 s to 100 h	Rated Frequency 50/60 Hz; DC
Terminal Type Screw terminals	Rated Operational Current AC-12 (Ie) 6:00 AM	Rated Operational Current DC-12 (Ie) 6:00 AM
Rated Operational Current DC-13 (Ie) 2:00 AM	Timer Relay Type Impulse-ON	Output 1 c/o (SPDT) contact
Short-Circuit Protective Devices n/c: 6 A fast-acting fuse; n/o: 10 A fast-acting fuse

Conductor Cross Section Flexible

2 × 0.5 to 1.5 mm²; 1 × 0.5 to 2.5 mm²

Conductor Cross Section Solid Core

2 × 0.5 to 1.5 mm²; 1 × 0.5 to 4 mm²

Depth 58 mm	Height 70 mm	Weight 0.060 kg
Width 17.5 mm	Width in No. of Modular Spacing 1

Storage Temperature

-40 to +85 °C

Operating Temperature

-20 to +60 °C

IP Rating

Housing: IP50; terminals: IP20

Standards and Approvals

EN 61812-1:2011; EN IEC 63000:2018

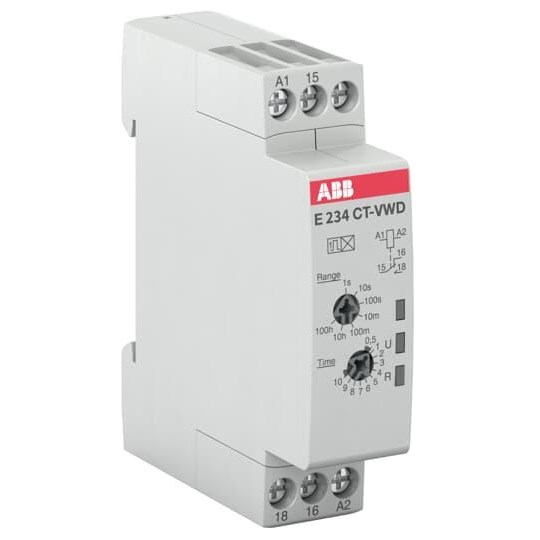

ABB CTVWD12 Timer Impulse On Delay 1CO SPDT Contact 24-240VAC 24-48VDC 6A Screw Terminal
