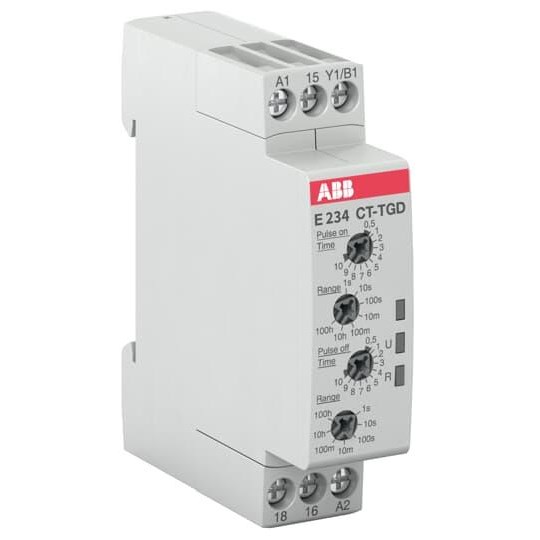

ABB CTTGD Time Relay 1CO SPDT Contact 24-240VAC 24-48VDC 4A Screw Terminal

Product Code: CTTGD

  • Versatile voltage range: 24-240 VAC, 24-48 VDC
  • Compact design: 17.5 mm width, 70 mm height
  • Flexible mounting on DIN rails
  • Wide operating time: 0.05 s to 100 hr
  • High protection standards: IP20/IP50 rated
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Time Relay
Brand
ABB
Series
CT

Electrical

Rated Control Supply Voltage (Us)
24 ... 240V AC 24 ... 48V DC
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300V
Rated Operational Voltage (Ue)
Auxiliary Circuit 250V DC
Rated Operational Current AC-15 (Ie)
(230V) 3A
Timing Range
0.05 s ... 100 h
Output Type
1 C/O (SPDT) Contact
Rated Frequency
50 / 60Hz DC
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230V) 6A
Rated Operational Current DC-12 (Ie)
(24V) 6A
Rated Operational Current DC-13 (Ie)
(24V) 2A
Timer Relay Type
Pulse Generator
Short-Circuit Protective Devices
Output Circuit NC-F Type Fuses 6 A Output Circuit NO-F Type Fuses 10 A

Dimensions & Physical Data

Depth
63mm
Height
70mm
Weight
0.052kg
Width
17.5mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-20°C to 60°C
IP Rating
IP50
