Specifications

Product Type

Electronic Time Relay

Brand

ABB

Series

CT-S

Rated Control Supply Voltage (Us) 24 to 240 V AC; 24 to 48 V DC	Rated Insulation Voltage (Ui) Input/output: 500 V; output 1/output 2: 300 V	Rated Operational Voltage (Ue) 250 V
Rated Operational Current AC-15 (Ie) 3:00 AM	Timing Range 0.05 s to 10 min	Rated Frequency 50/60 Hz; DC
Terminal Type Screw terminals	Rated Operational Current AC-12 (Ie) 4:00 AM	Rated Operational Current DC-12 (Ie) 4:00 AM
Rated Operational Current DC-13 (Ie) 2:00 AM	Timer Relay Type Star-delta	Output 2 n/o contacts
Short-Circuit Protective Devices n/o: 10 A fast-acting fuse

Conductor Cross Section Flexible

1 × 0.5 to 2.5 mm²; 2 × 0.5 to 1.5 mm²

Conductor Cross Section Solid Core

1 × 0.5 to 4 mm²; 2 × 0.5 to 2.5 mm²

Depth 103.7 mm	Height 85.6 mm	Weight 0.114 kg
Width 22.5 mm

Storage Temperature

-40 to +85 °C

Operating Temperature

-25 to +60 °C

IP Rating

Housing: IP50; terminals: IP20

Standards and Approvals

EN 61812-1:2011; EN IEC 63000:2018

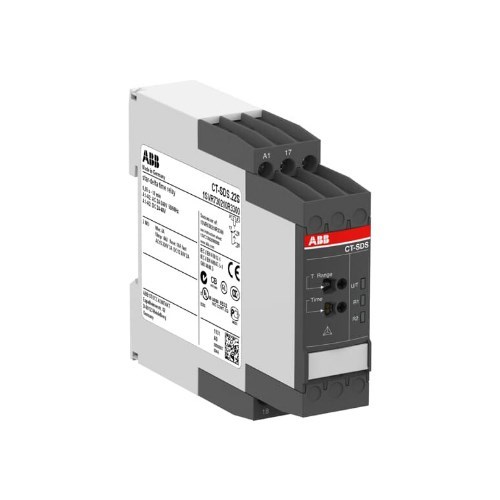

ABB CT-SDS.22S Time Relay 2NO 24-240VAC 24-48VDC 4A Screw Terminal
