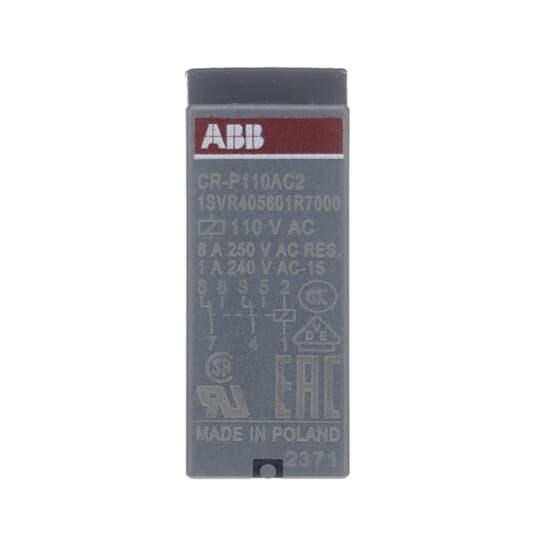

ABB CRP110AC2 Pluggable Interface Relay 110VAC 2CO SPDT Contact 8A

Product Code: CRP110AC2

  • Rated for 110 VAC, 8 A
  • Compact size: 12.7 x 15.7 mm
  • IP67 protection for harsh environments
  • Operates from -40 to 70°C
  • Complies with IEC/EN 61810-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pluggable Interface Relay
Brand
ABB
Series
CR-P

Electrical

Actuating Voltage
Min: 5 VMax: 300 V DC/440 V AC
No. of Change-Over Contacts
2
Rated Current (In)
0.333333
Rated Voltage (Ur)
400 V AC

Mechanical

Contact Material
AgNi
Mounting
PCB

Dimensions & Physical Data

Depth
29 mm
Height
15.7 mm
Width
12.7 mm

Environmental

Operating Temperature
-40 ... +85 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
