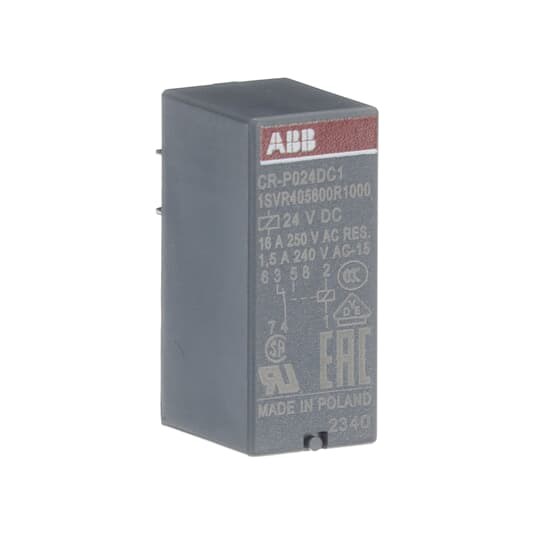

ABB CRP024DC1 Pluggable Interface Relay 24VDC 1CO SPDT Contact 16A

Product Code: CRP024DC1

  • Operates at 24 VDC with 16 A current
  • Compact size: 12.7 mm width, 15.7 mm height
  • IP67 protection for harsh environments
  • Wide temp range: -40 to 70°C
  • Complies with IEC/EN 61810-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pluggable Interface Relay
Brand
ABB
Series
CR-P

Electrical

Actuating Voltage
24V DC
No. of Change-Over Contacts
1
Electrical Connection
Soldering Pins
Rated Current (In)
16A
Rated Voltage (Ur)
250V AC

Mechanical

Contact Material
AgNi
Mounting
Socket

Dimensions & Physical Data

Depth
29mm
Height
15.7mm
Width
12.7mm

Environmental

IP Rating
IP67
Ambient Temperature
-40...+85 ° °C

Documents

IPD Product Catalogue V17
