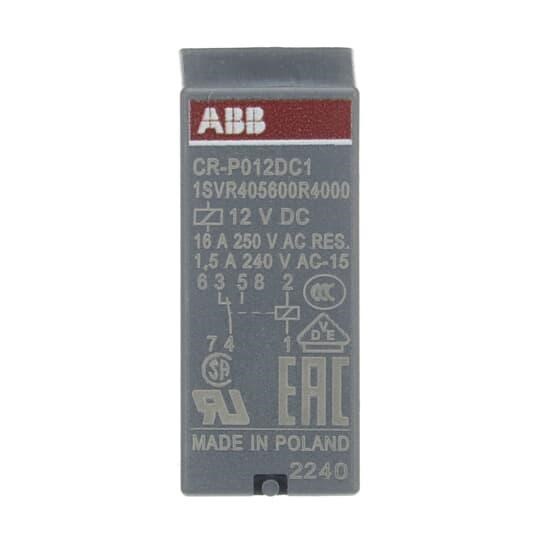

ABB CRP012DC1 Pluggable Interface Relay 12VDC 1CO SPDT Contact 8A

Product Code: CRP012DC1

  • 12 VDC, 8 A rated for reliable performance
  • Compact size: 12.7 mm width, 15.7 mm height
  • IP67 protection for harsh environments
  • Operates in -40 to 70°C temperature range
  • IEC/EN 61810-1 compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pluggable Interface Relay
Brand
ABB
Series
CR-P

Electrical

Actuating Voltage
Min: 5 VMax: 300V DC/440V AC
No. of Change-Over Contacts
1
Rated Current (In)
16A
Rated Voltage (Ur)
400V AC

Mechanical

Contact Material
AgNi
Mounting
PCB

Dimensions & Physical Data

Depth
29mm
Height
15.7mm
Width
12.7mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
