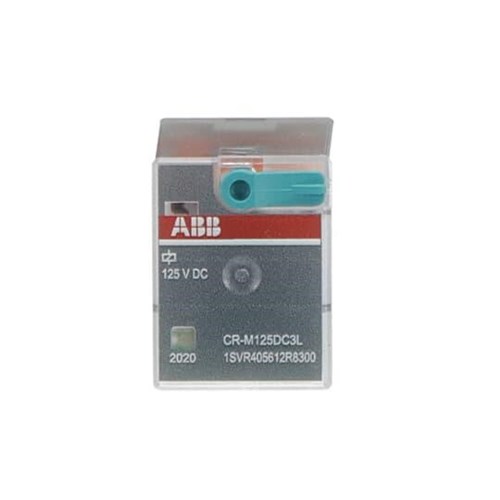

ABB CRM125DC3L Pluggable Interface Relay 21.2mm W Flat Plug-In Connector Terminal 125VDC 10A

Product Code: CRM125DC3L

  • Rated for 125 VDC and 10 A
  • Compact design: 21.2x27.5x35.6 mm
  • IP40 protection rating
  • Operates in -40 to 70°C range
  • Complies with UL, IEC, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pluggable Interface Relay
Brand
ABB
Series
CR-M

Electrical

Actuating Voltage
125V DC
No. of Change-Over Contacts
3
Electrical Connection
Flat-Pin Connections
Rated Current (In)
0.416667
Rated Voltage (Ur)
250 V AC

Mechanical

Contact Material
AgNi
Mounting
Socket

Dimensions & Physical Data

Depth
27.5 mm
Height
35.6 mm
Width
21.2 mm

Environmental

IP Rating
IP40
Ambient Temperature
-40 ... +70 °C

Documents

IPD Product Catalogue V17
