Products

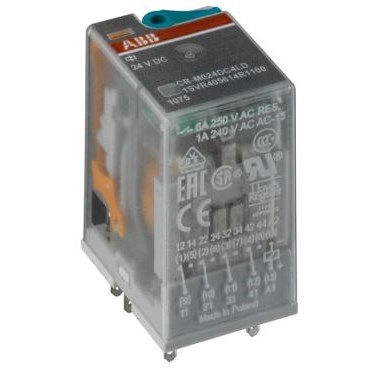

ABB CRM048DC4 Pluggable Interface Relay 21.2mm W Flat Plug-In Connector Terminal 48VDC 6A

Product Code: CRM048DC4

  • 48 VDC rated voltage, 6 A current
  • 4CO SPDT contact configuration
  • Flat plug-in connector terminals
  • Compact size: 21.2 x 27.5 x 35.6 mm
  • IP40 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pluggable Interface Relay
Brand
ABB
Series
CR-M

Electrical

Actuating Voltage
48V DC
No. of Change-Over Contacts
4
Electrical Connection
Flat-Pin Connections
Rated Current (In)
0.25
Rated Voltage (Ur)
250 V AC

Mechanical

Contact Material
AgNi
Mounting
Socket

Dimensions & Physical Data

Depth
27.5 mm
Height
35.6 mm
Width
21.2 mm

Environmental

IP Rating
IP40
Ambient Temperature
-40 ... +70 °C

Documents

IPD Product Catalogue V17
