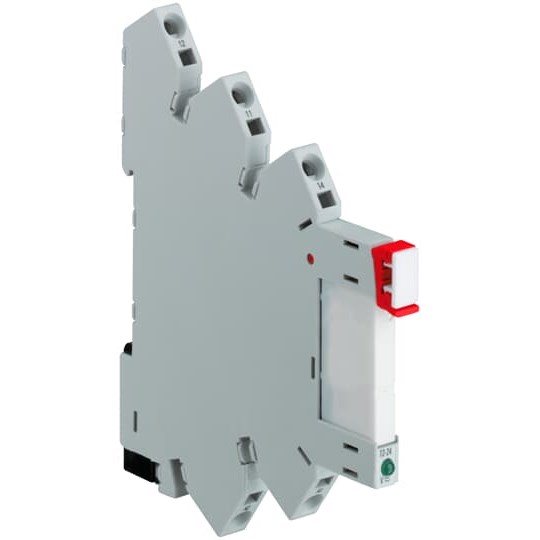

ABB CR-S024VADC1CRZ Interface Relay 6.2mm W 24VAC/DC 6A CR-S

Product Code: CR-S024VADC1CRZ

  • 24 VAC/VDC, 6 A rated interface relay
  • Slim design: only 6.2 mm wide
  • DIN rail mount for easy installation
  • Operates in -40 to 85°C range
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pluggable Interface Relay
Brand
ABB
Series
CR-S

Electrical

Actuating Voltage
24V AC/DC
No. of Change-Over Contacts
1
Electrical Connection
Spring Terminals
Rated Current (In)
6A
Rated Voltage (Ur)
250V AC

Mechanical

Contact Material
AgSnO2
Mounting
Socket

Dimensions & Physical Data

Depth
28mm
Height
15mm
Width
5mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 85°C

Documents

IPD Product Catalogue V17
