Product Code: CPE24/5

Rated power of 120 W for robust performance
Wide voltage range: 90-132 VAC, 180-264 VAC, 24 VDC
Operates in extreme temps from -35 to 70°C
Compliant with multiple global standards & RoHS
Easy DIN Rail mounting for quick installation

Specifications

General

Product Type

Power Supply

Brand

ABB

Series

CPE

Electrical

Input Voltage 90-132 V AC / 180-264 V AC / 210-375 V DC	Output Current - Nominal 5 A	Output Current - Range 5 A
Output Power 120 W	Output Voltage - Nominal 24 V DC	Output Voltage - Range 22.5-28.5 V DC

Mechanical

Mounting Style

DIN Rail

Dimensions & Physical Data

Depth 123.6 mm	Height 123.6 mm	Weight 0.882 kg
Width 63.2 mm

Environmental

Approvals / Conformity

UL 508, UL 60950, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.213, CAN/CSA C22.2 No.60950, ANSI/ISA-12.12, CE, UKCA, RoHS, REACH

Operating Temperature

-35 to 70°C

IP Rating

IP20

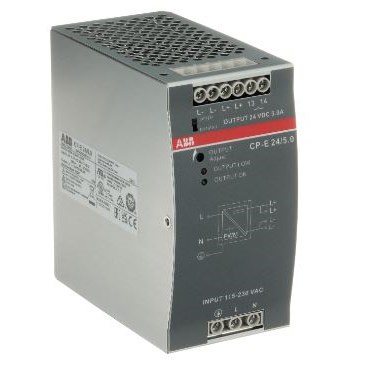

ABB CPE24/5 CP-E Power Supply 1PH 90-132VAC 180-264VAC 24VDC 5A 120 Watt DIN Rail Mount IP20

Product Code: CPE24/5

Need full access to stock, pricing, and ordering?

Specifications

General

Electrical

Mechanical

Dimensions & Physical Data

Environmental

Documents

IPD Product Catalogue V17

Products to compare:
