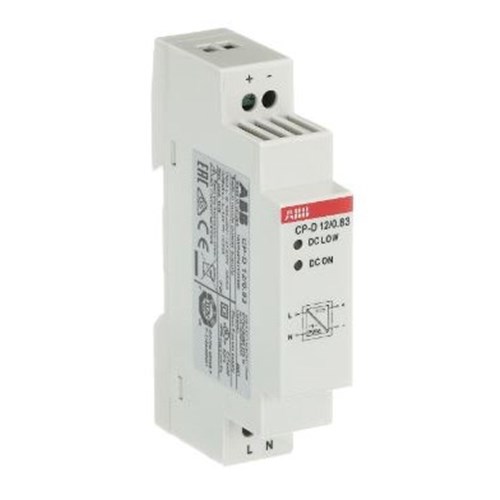

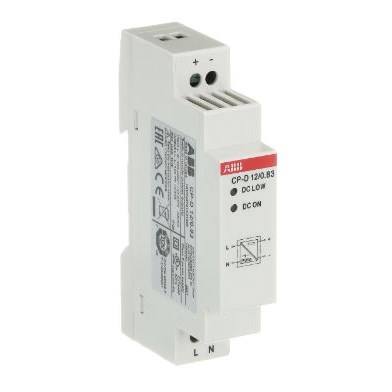

ABB CPD12/0.83 DC Industrial Power Supply 1PH 90-264VAC 12VDC 0.83A 10 Watt DIN Rail Mount IP20

Product Code: CPD12/0.83

  • Compact size: 18mm width, fits DIN rail
  • Wide voltage range: 90-264 VAC input
  • Robust protection: IP20 rating
  • Operates in extreme temps: -40 to 70°C
  • Rated power output of 10W
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
ABB
Series
CP - D

Electrical

Input Voltage
90 ... 264 V AC / 120 ... 375 V DC
Output Current - Nominal
0.83A
Output Power
10W
Output Voltage - Nominal
12V DC
Output Voltage - Range
-
Efficiency
0.78
Terminal Type
Screw Terminal

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
57.5mm
Height
91mm
Width
18mm

Environmental

Approvals / Conformity
CAN/CSA C22.2 No.107.1 CAN/CSA C22.2 No.223 CAN/CSA C22.2 No.60950 IEC/EN 63000 IEC 60950-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 1310 UL 508 UL 60950
Operating Temperature
Operation -40 ... +70°C
IP Rating
Housing IP20 Terminals IP20

Documents

IPD Product Catalogue V17
