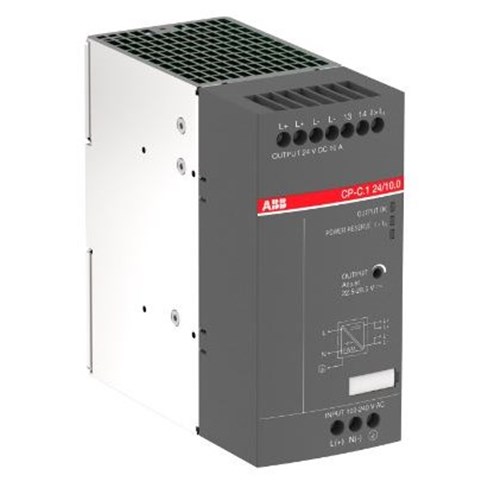

ABB CPC.124/10 Power Supply 1PH 85-264VAC 10A 240 Watt DIN Rail Mount IP20

Product Code: CPC.124/10

  • 10 A rated current for efficient operation
  • Wide voltage range: 85-264 VAC
  • Operates in -40 to 70°C ambient temp
  • Compact design: 60 mm width, 136 mm length
  • DIN Rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
ABB
Series
CP-C

Electrical

Input Voltage
85 ... 264 V AC / 90 ... 300 V DC
Output Current - Nominal
10:00 AM
Output Current - Range
0 - 15 A
Output Power
240 W
Output Voltage - Nominal
24 V DC
Output Voltage - Range
22.5 ... 28.5 V DC
Efficiency
0.93
Terminal Type
Screw Terminal

Mechanical

Housing Material
cover: zinc-coated sheet-steel housing: shell aluminium front: plastic, PA6, V-0

Environmental

IP Rating
Housing IP20 Terminals IP20
