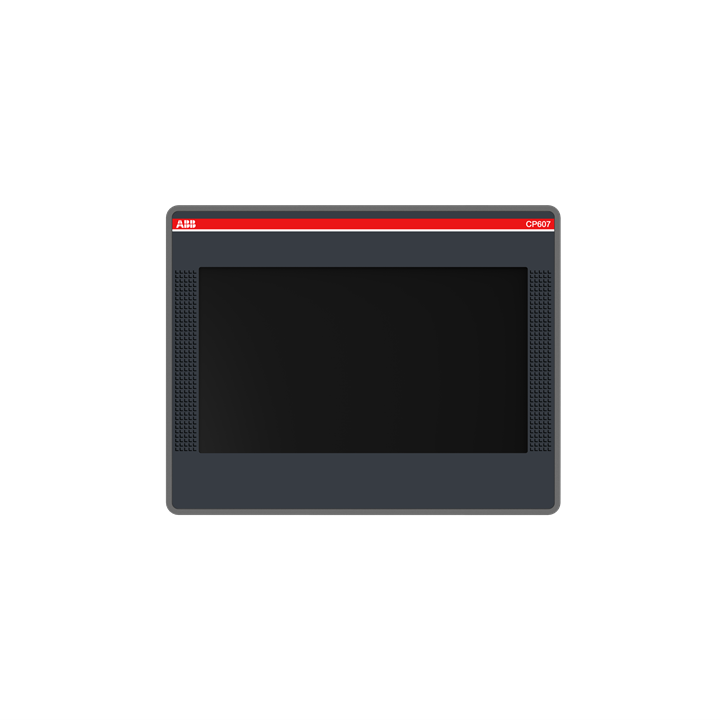

ABB CP607 Control Panel 7in

Product Code: CP607

  • 7-inch touch screen display
  • High resolution: 800 x 480 pixels
  • IP66 rated for protection
  • Operates in temperatures from 0 to 50°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Panel
Brand
ABB
Series
CP600-eCo

Electrical

Power Consumption
0.30 A at 24V DC
Supply Voltage
18V to 32V DC
Terminal Type
Removable 3-pin Screw Terminal
Touch Type
TFT Resistive Touch

Mechanical

Housing Material
Plastic
Display Colour/Type
65536 Colors

Dimensions & Physical Data

Depth
35mm
Height
147mm
Width
187mm
Panel Cut-Out Size
176mm x 136mm
Display Size
155.50 mm x 88 mm

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
0°C to 50°C
IP Rating
IP66 (Front), IP20 (Rear)

Communication & Control

Ethernet Port Speed
10/100 Mbit
Ethernet Ports
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
RS-232, RS-485, RS-424

Safety, Standards & Compliance

Hazardous Location Ratings
NA
Certifications / Approvals
EN 61000-6-2, EN 61000-6-6
