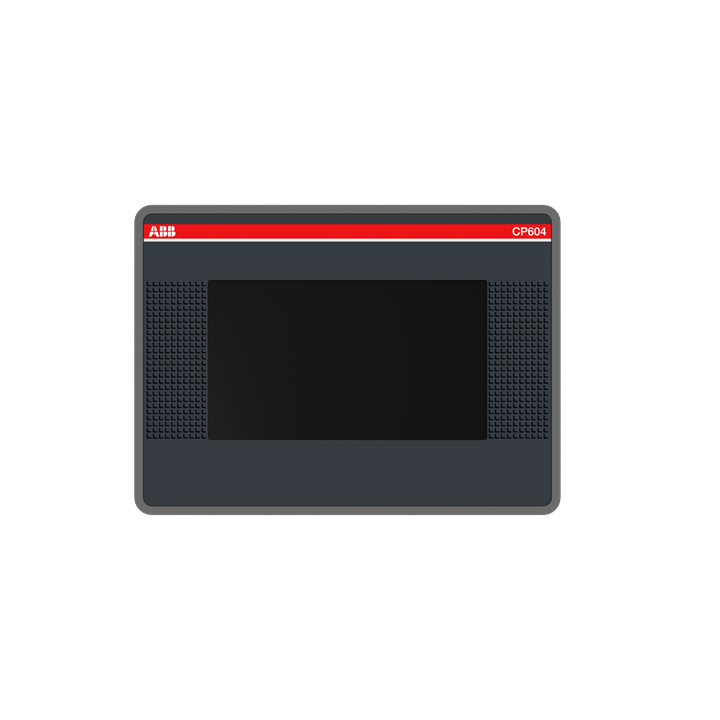

ABB CP604 Control Panel 4.3in

Product Code: CP604

  • 4.3-inch touch screen display
  • Resolution of 480 x 272 pixels
  • Operates in temperatures from 0 to 50°C
  • IP20/IP66 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Panel
Brand
ABB
Series
CP600-eCo

Electrical

Power Consumption
0.25 A at 24V DC
Supply Voltage
18V to 32V DC
Terminal Type
Removable 3-pin Screw Terminal
Touch Type
TFT Resistive Touch

Mechanical

Housing Material
Plastic
Display Colour/Type
65536 Colors

Dimensions & Physical Data

Depth
35mm
Height
107mm
Width
147mm
Panel Cut-Out Size
136mm x 96mm
Display Size
96.44 mm x 55.26 mm

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
0°C to 50°C
IP Rating
IP66 (Front), IP20 (Rear)

Communication & Control

Ethernet Port Speed
10/100 Mbit
Ethernet Ports
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
RS-232, RS-485, RS-423

Safety, Standards & Compliance

Hazardous Location Ratings
NA
Certifications / Approvals
EN 61000-6-2, EN 61000-6-5
