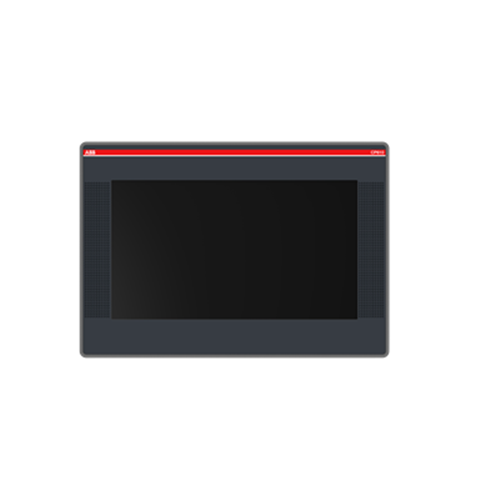

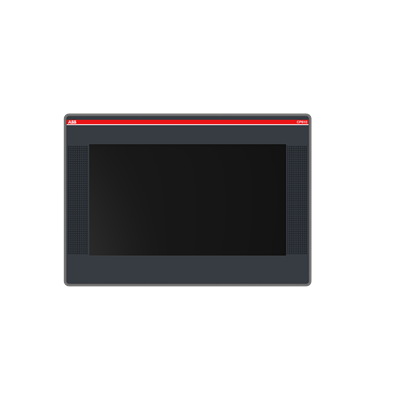

ABB CONTROL PANEL. 10.1" TFT TOUCH SCREEN, 64 K COLORS, 1024X600 PIXEL CP610

Product Code: CP610

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Control Panel
Brand
ABB
Series
CP600-eCo

Electrical

Power Consumption
0.38 A at 24V DC
Supply Voltage
18V to 32V DC
Terminal Type
Removable 3-pin Screw Terminal
Touch Type
TFT Resistive Touch

Mechanical

Housing Material
Plastic
Display Colour/Type
65536 Colors

Dimensions & Physical Data

Depth
35mm
Height
197mm
Width
282mm
Panel Cut-Out Size
271mm x 186mm
Display Size
224.32 mm x 126.88 mm

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
0°C to 50°C
IP Rating
IP66 (Front), IP20 (Rear)

Communication & Control

Ethernet Port Speed
10/100 Mbit
Ethernet Ports
1
Serial Ports
1
USB Port
1
Supported Serial Protocols
RS-232, RS-485, RS-422

Safety, Standards & Compliance

Hazardous Location Ratings
NA
Certifications / Approvals
EN 61000-6-2, EN 61000-6-4
