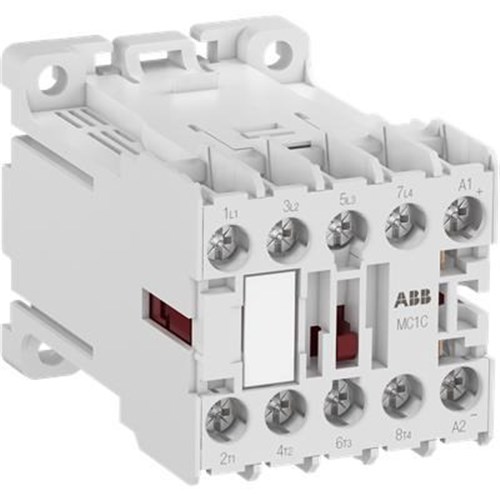

ABB CONTACTOR MC1 4P 20A AC1 4kW AC3 220VDC COIL MC1C400ATWN

Product Code: MC1C400ATWN

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
220V DC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
20A
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
0.208333333
Rated Operational Power AC-3 400V (Pe)
4kW
Rated Operational Power AC-3 690V (Pe)
4kW
Rated Frequency
DC; 50/60Hz main circuit
No. of Poles
4P

Dimensions & Physical Data

Depth
68mm
Height
48mm
Weight
0.25kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1

Documents

IPD Product Catalogue V17
