Product Type

Single/Three - Phase And Neutral Monitoring Relay

Brand

ABB

Series

CM-PVE

Function Phase failure, overvoltage, undervoltage and interrupted-neutral monitoring; suitable for single-phase monitoring	Rated Control Supply Voltage (Us) L-L: 3 x 320 to 460 V AC; L-N: 185 to 265 V AC	Rated Insulation Voltage (Ui) 400 V AC
Rated Operational Voltage (Ue) 250 V	Rated Operational Current AC-15 (Ie) 3:00 AM	Timing Range Start-up delay: 500 ms; tripping delay: 500 ms
Measuring Range L-L: 3 x 320 to 460 V AC; L-N: 185 to 265 V AC	Rated Frequency 50/60 Hz	Terminal Type Screw terminals
Rated Operational Current AC-12 (Ie) 4:00 AM	Rated Operational Current DC-12 (Ie) 4:00 AM	Rated Operational Current DC-13 (Ie) 2:00 AM
Minimum Switching Capacity 24 V / 10 mA	Output 1 n/o contact	Short-Circuit Protective Devices 10 A fast-acting
Electrical Life 100000 cycle

Conductor Cross Section Flexible

2 x 0.75 to 1.5 mm² (with wire end ferrule); 2 x 1 to 1.5 mm² (without wire end ferrule)

Conductor Cross Section Solid Core

2 x 0.75 to 1.5 mm²

Depth 78.5 mm	Height 78 mm	Weight 0.069 kg
Width 22.5 mm

Storage Temperature

-40 to 85 °C

Operating Temperature

-20 to 60 °C

IP Rating

IP50 (housing); IP20 (terminals)

Standards and Approvals

IEC/EN 60947-5-1; EN 50178; cULus E140448; CCC; DNV GL; CE; UKCA; RCM; CMIM; RoHS

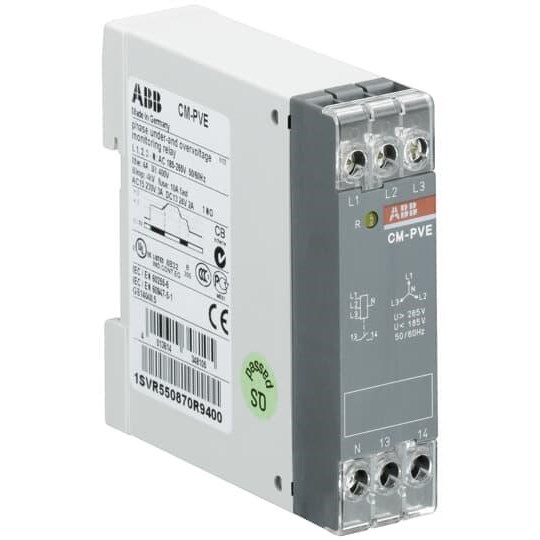

ABB CMPVEN Single/Three Phase and Neutral Monitoring Relay 3

Specifications
