Specifications

Product Type

Phase Monitoring Relay

Brand

ABB

Series

Function Phase failure detection Over- and undervoltage monitoring	Rated Control Supply Voltage (Us) (L-L) 320 ... 460V AC	Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 400V
Rated Operational Current AC-15 (Ie) (230V) 3A	Measuring Range (L-L) 320 ... 460 V AC	Output Type 1 N/O Contact
Rated Frequency 50/60Hz	Terminal Type Screw Terminals	Rated Operational Current AC-12 (Ie) (230V) 4A
Rated Operational Current DC-12 (Ie) (24V) 4A	Rated Operational Current DC-13 (Ie) (24V) 2A	Short-Circuit Protective Devices Output Circuit NC-F Type Fuses 10 A Output Circuit NO-F Type Fuses 10 A

Conductor Cross Section Flexible

Flexible with Ferrule 2x 0.75 ... 1.5 mm²Flexible 2x 1 ... 1.5mm²

Conductor Cross Section Solid Core

Rigid 2x 0.75 ... 1.5mm²

Depth 78.5mm	Height 78mm	Weight 0.066kg
Width 22.5mm

Storage Temperature

-40°C to 85°C

Operating Temperature

-20°C to 60°C

Standards and Approvals

IEC 60364IEC/EN 61643UL

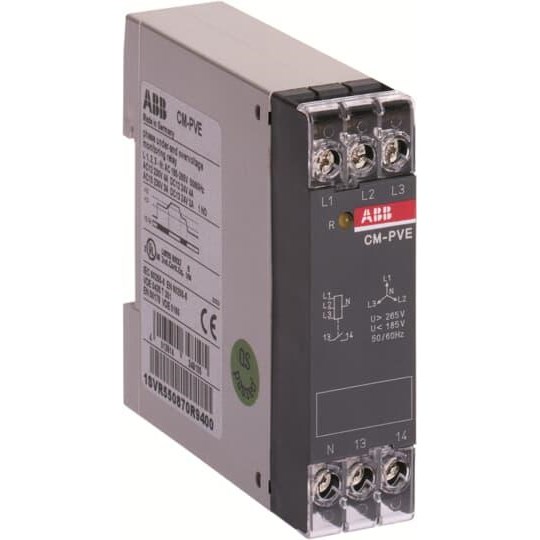

ABB CMPVE Phase Monitoring Relay 3 320-460VAC (L-L) 320-460VAC 1NO 4A
