Specifications

General

Product Type

Temp. Monitoring Relays

Brand

ABB

Series

Electrical

Function Overtemperature monitoring Undertemperature monitoring Over- and undertemperature monitoring	Rated Control Supply Voltage (Us) 24V to 240V AC/DC	Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 300 VOutput Circuit 1 / Output Circuit 2 300 VSupply Circuit / Measuring Circuit 300 VSupply Circuit / Output Circuit 300V
Rated Operational Current AC-15 (Ie) (230V) 3A	Measuring Range -50 ... 50 °C	Output Type 2x 1 C/O or 1x 2 C/O Contact, Configurable
Rated Frequency Supply Circuit 50 HzSupply Circuit 60 HzSupply Circuit DC Hz	Terminal Type Screw Terminals	Rated Operational Current AC-12 (Ie) (230V) 4A
Rated Operational Current DC-12 (Ie) (24V) 4A	Rated Operational Current DC-13 (Ie) (24V) 2A	Minimum Switching Capacity 24 V10 mA
Short-Circuit Protective Devices Output Circuit NC-F Type Fuses 6 A Output Circuit NO-F Type Fuses 10 A	Electrical Life AC-12 100000 cycle	Mechanical Life Nr. Operations 30000000 cycle

Mechanical

Conductor Cross Section Flexible

Flexible with Ferrule 1x 0.5 ... 2.5 mm²Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5mm²

Conductor Cross Section Solid Core

Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 2.5mm²

Dimensions & Physical Data

Depth 103.7mm	Height 85.6mm	Weight 0.151kg
Width 22.5mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-25°C to 60°C

IP Rating

IP50

Safety, Standards & Compliance

Standards and Approvals

IEC 60364IEC/EN 61643UL

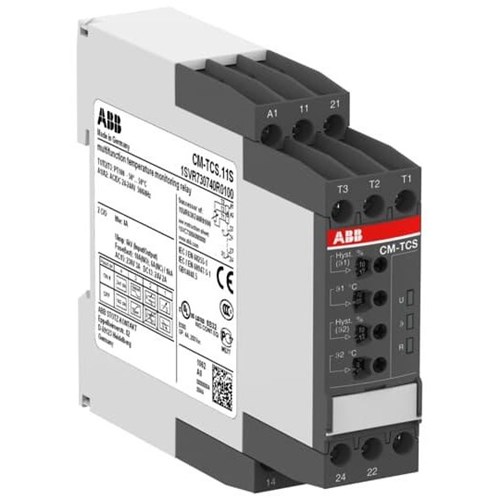

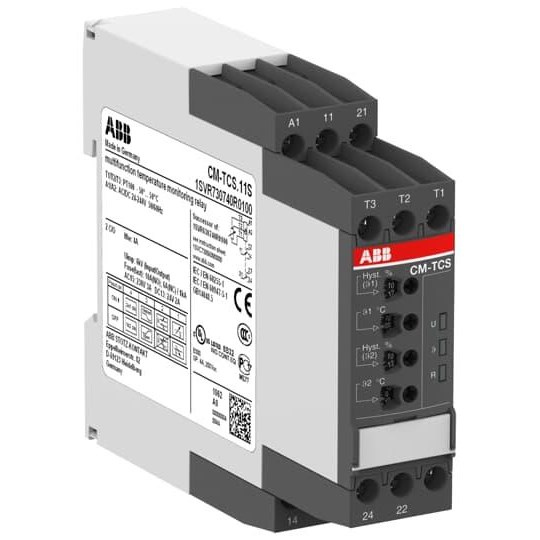

ABB CM-TCS.11S Temperature Monitoring Relays -50 to 50deg C 24-240VAC/DC 2 x 1CO or 1 x 2CO 4A

Product Code: CM-TCS.11S
