Specifications

Product Type

Phase sequence monitoring relay

Brand

ABB

Series

Function Phase failure detection Phase sequence monitoring	Rated Control Supply Voltage (Us) (L-L) 208 ... 440 V AC	Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 600 V
Rated Operational Current AC-15 (Ie) (230 V) 3 A	Measuring Range (L-L) 208 ... 440 V AC	Output Type 1 C/O (SPDT) Contact
Rated Frequency 50/60 Hz	Terminal Type Screw Terminals	Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A	Rated Operational Current DC-13 (Ie) (24 V) 2 A	Short-Circuit Protective Devices Output Circuit NC-F Type Fuses 6 A Output Circuit NO-F Type Fuses 10 A

Conductor Cross Section Flexible

Flexible with Ferrule 2x 0.75 ... 1.5 mm²Flexible 2x 1 ... 1.5 mm²

Conductor Cross Section Solid Core

Rigid 2x 0.75 ... 1.5 mm²

Depth 78.5 mm	Height 78 mm	Weight 0.068 kg
Width 22.5 mm

Storage Temperature

-40 ... +85 °C

Operating Temperature

-20 ... +60 °C

Standards and Approvals

IEC 60364IEC/EN 61643UL

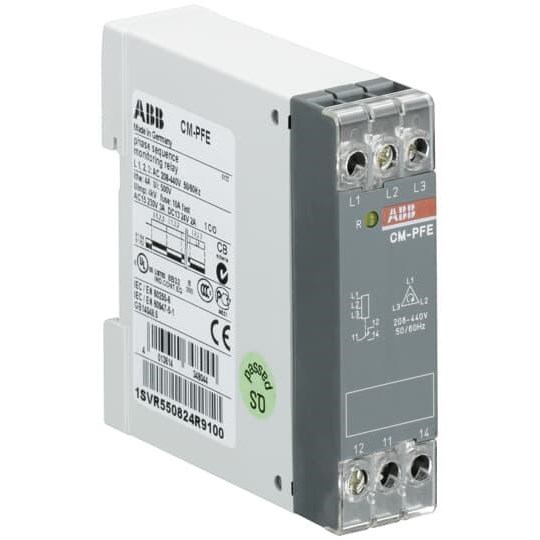

ABB CM-PFE Three-Phase Monitoring Relays 3 208-440VAC (L-L) 200-500VAC 1CO SPDT 4A
