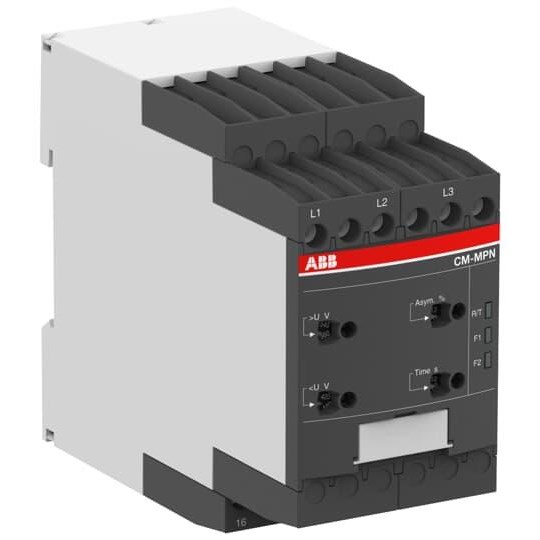

ABB CM-MPN.62S Three-Phase Monitoring Relay 3 450-720VAC (L-L) 450-720VAC 2 x 1CO or 1 x 2CO 4A

Product Code: CM-MPN.62S

  • Measures 450-720 VAC (L-L) for voltage monitoring
  • Handles up to 4 A current with 50/60 Hz frequency
  • Detects phase sequence, failure, and unbalance
  • Offers automatic phase sequence correction
  • DIN Rail mounting with screw terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Three - Phase Monitoring Relay
Brand
ABB
Series
CM

Electrical

Function
Automatic phase sequence correction Over- and undervoltage monitoring Phase failure detection Phase unbalance detection Phase sequence monitoring
Rated Control Supply Voltage (Us)
(L-L) 450 ... 720V AC
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 1000 VOutput Circuit 1 / Output Circuit 2 300V
Rated Operational Current AC-15 (Ie)
(230V) 3A
Measuring Range
(L-L) 450 ... 720 V AC
Output Type
2x 1 C/O or 1x 2 C/O Contact, Configurable
Rated Frequency
Measuring Circuit 15 ... 400Hz
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230V) 4A
Rated Operational Current DC-12 (Ie)
(24V) 4A
Rated Operational Current DC-13 (Ie)
(24V) 2A
Minimum Switching Capacity
24 V10 mA
Short-Circuit Protective Devices
Output Circuit NC-F Type Fuses 6 A Output Circuit NO-F Type Fuses 10 A
Electrical Life
AC-12 100000 cycle
Mechanical Life
Nr. Operations 30000000 cycle

Mechanical

Conductor Cross Section Flexible
Flexible with Ferrule 1x 0.5 ... 2.5 mm²Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm134
Conductor Cross Section Solid Core
Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 2.5 mm131

Dimensions & Physical Data

Depth
104.8mm
Height
85.6mm
Weight
0.229kg
Width
46mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-25°C to 60°C
IP Rating
IP50

Safety, Standards & Compliance

Standards and Approvals
IEC 60364IEC/EN 61643UL

Documents

IPD Product Catalogue V17
