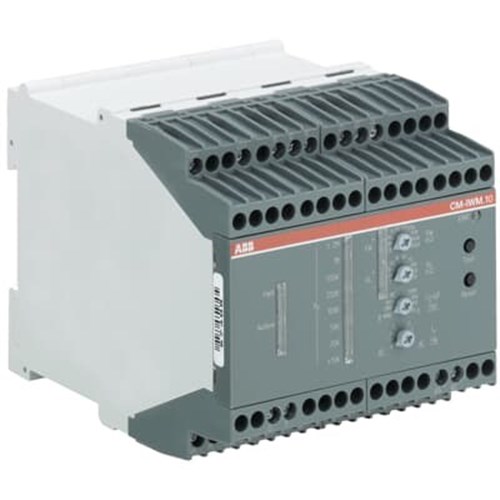

ABB CM-IWM.10 Insulation Monitoring Relay 20-2000kOhm 24VDC 2CO SPDT

Product Code: CM-IWM.10

  • Measuring range: 20-2000 kOhm
  • Rated voltage: 24 VDC
  • Frequency range: 16-1000 Hz
  • Contact form: 2CO SPDT
  • Protection rating: IP20
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Insulation Monitoring Relay
Brand
ABB
Series
CM

Electrical

Function
Unearthed mixed AC / DC systems Up to 1000 V DC Up to 760 V AC Unearthed AC systems Unearthed DC systems
Rated Control Supply Voltage (Us)
24V DC
Measuring Range
20 ... 2000 k?
Output Type
2 C/O Contacts
Rated Frequency
Measuring Circuit 16 ... 1000 HzMeasuring Circuit DC HzSupply Circuit DC
Terminal Type
Screw Terminals

Mechanical

Conductor Cross Section Flexible
Flexible with Insulated Ferrule 1x 2.5 mm²Flexible with Insulated Ferrule 2x 1.5mm²
Conductor Cross Section Solid Core
Rigid 1x 4mm²

Dimensions & Physical Data

Depth
121mm
Height
90mm
Weight
0.5kg
Width
90mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60364IEC/EN 61643UL
