Specifications

General

Product Type

Coupling Unit

Brand

ABB

Series

Electrical

Function

Accessory-Coupling unit for voltage expansion of CM-IWN.1 Up to 690 V AC Up to 1000 V DC

Rated Frequency

Measuring Circuit 15 ... 400Hz

Terminal Type

Screw Terminals

Mechanical

Conductor Cross Section Flexible

Flexible with Ferrule 1x 0.5 ... 2.5 mm²Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm131

Conductor Cross Section Solid Core

Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 2.5mm²

Dimensions & Physical Data

Depth 104.8mm	Height 85.6mm	Weight 0.179kg
Width 45mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-25°C to 60°C

IP Rating

IP50

Safety, Standards & Compliance

Standards and Approvals

IEC 60364IEC/EN 61643UL

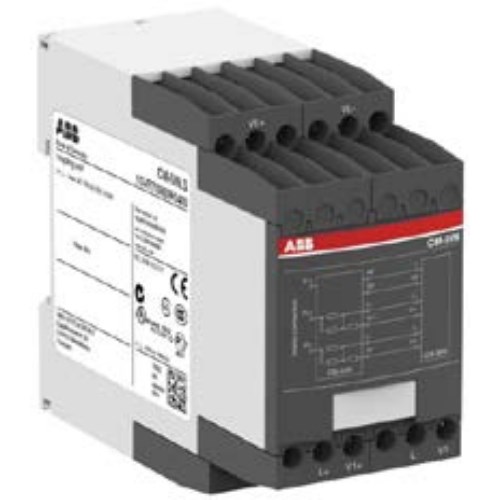

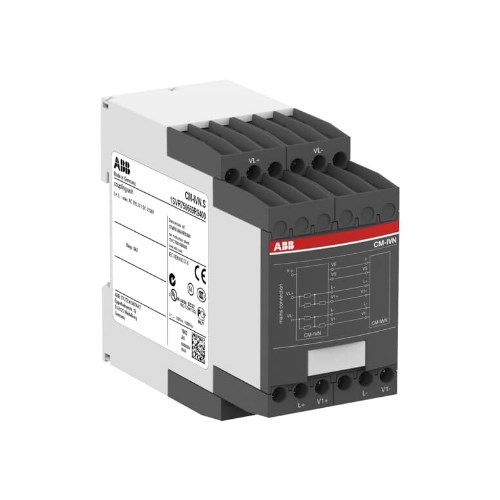

ABB CM-IVN.S Coupling Unit 45mm W Screw Terminal

Product Code: CM-IVN.S
