Specifications

Product Type

Liquid Level Monitoring Relay

Brand

ABB

Series

CM-ENE MIN

Function Dry-running protection with two electrodes	Rated Control Supply Voltage (Us) 110 to 130 V AC	Rated Insulation Voltage (Ui) 250 V
Rated Operational Voltage (Ue) 250 V	Rated Operational Current AC-15 (Ie) 3:00 AM	Timing Range Response delay approx. 200 ms
Measuring Range 0 to 100 kO	Rated Frequency 50/60 Hz	Terminal Type Screw terminals
Rated Operational Current AC-12 (Ie) 4:00 AM	Rated Operational Current DC-12 (Ie) 4:00 AM	Rated Operational Current DC-13 (Ie) 2:00 AM
Output 1 n/o contact, open-circuit principle	Short-Circuit Protective Devices 10 A fast-acting, operating class gL	Electrical Life 300000 cycle

Conductor Cross Section Flexible

2 x 1.5 mm²

Weight

0.15 kg

Width

22.5 mm

Storage Temperature

-40 to 85 °C

Operating Temperature

-20 to 60 °C

IP Rating

IP50 (housing); IP20 (terminals)

Standards and Approvals

IEC 255-6; EN 60255-6; EN 61000-6-2; EN 61000-6-4

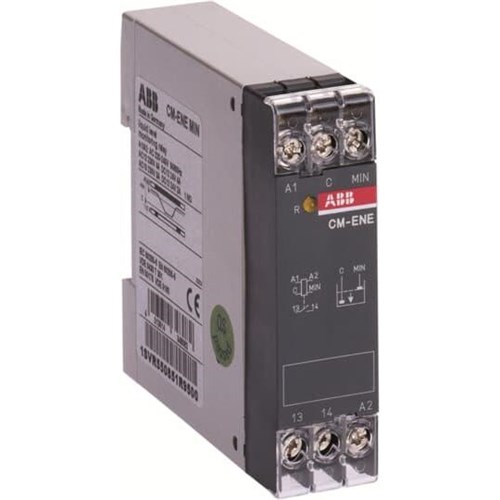

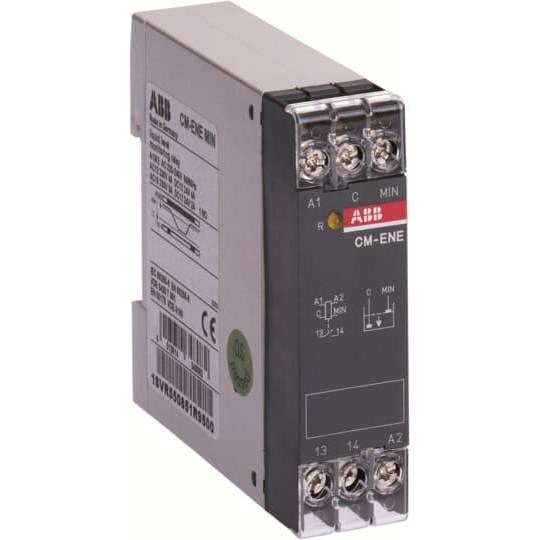

ABB CM-ENE.MIN.110 Liquid Level Relay 0-100kOhm 110-130VAC 2-Electrode 1NO 4A
