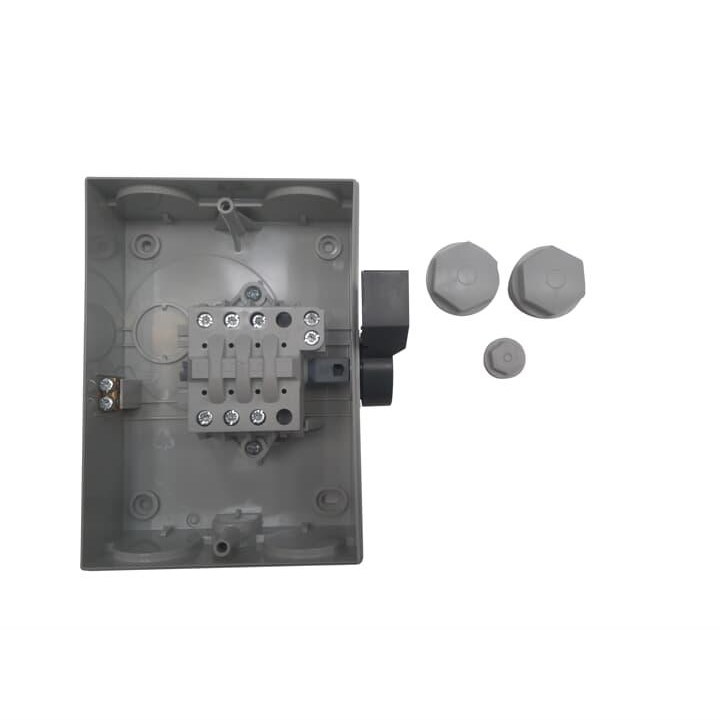

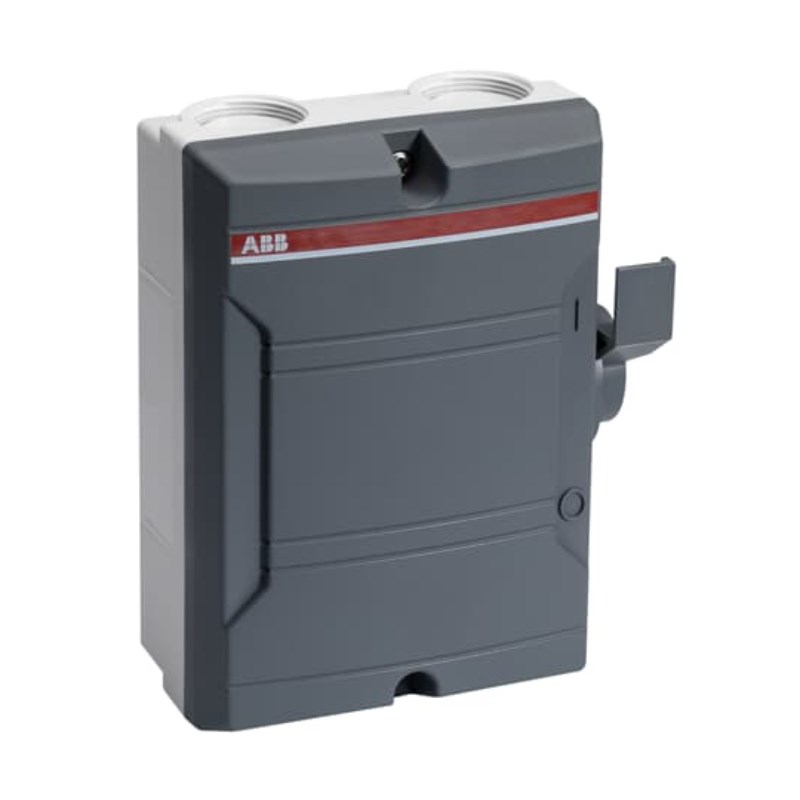

ABB BW340TPN Enclosed Switch Disconnector Plastic IP65 40A 25A 3-P 690V Grey Side Operated Handle

Product Code: BW340TPN

  • Rated for 40 A, 690 V applications
  • IP65 protection with IK08 impact resistance
  • Side operated handle for ease of use
  • Top and bottom cable entry options
  • Complies with IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed Switch Disconnector
Brand
ABB
Application
Safety isolation and switch-disconnector applications

Electrical

Utilization Category
AC-23
Rated Current (In)
40A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
No. of Poles
3P

Mechanical

Body Style
Enclosed
Cable Entry
Top/Bottom; 2 x M32 / 2 x M32 + M16
Colour
Grey enclosure / grey side-operated handle
Material
Rigid polycarbonate enclosure
Mounting
Surface mounted enclosure
Connection/Termination
Screw terminals; 0.75 - 10 mm²

Dimensions & Physical Data

Depth
68mm
Height
168mm
Weight
0.41kg
Width
138mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1 & -3
Certifications / Approvals
CE

Documents

IPD Product Catalogue V17
