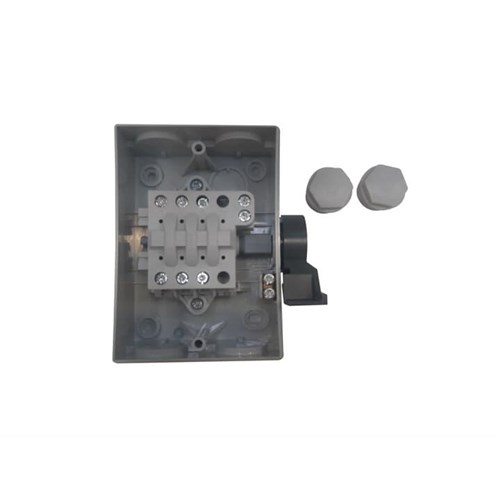

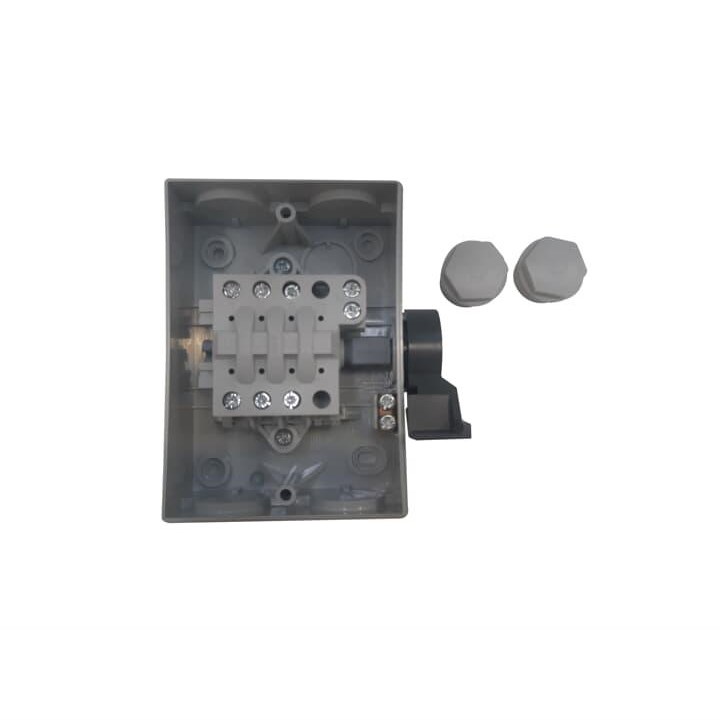

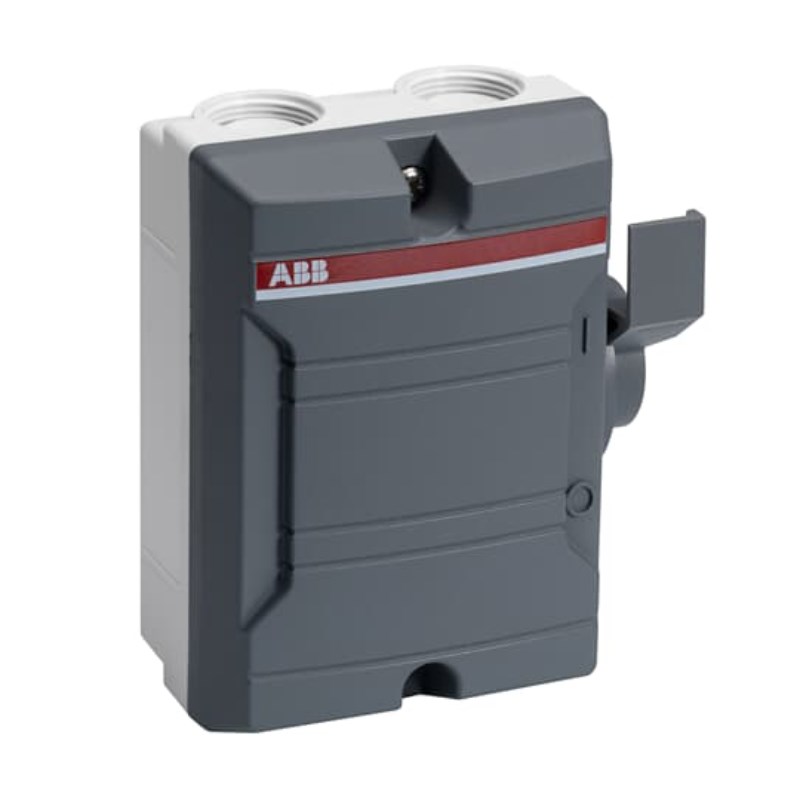

ABB BW325TPN Enclosed Switch Disconnector Plastic IP65 25A 16A 3-P 690V Grey Side Operated Handle

Product Code: BW325TPN

  • Rated for 32 A, 690 V applications
  • Compact size: 111x130x60 mm
  • Robust IP65 protection rating
  • Side-operated handle for ease of use
  • Top and bottom cable entry options
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed Switch Disconnector
Brand
ABB
Application
Safety isolation and switch-disconnector applications

Electrical

Utilization Category
AC-23
Rated Current (In)
25A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
No. of Poles
3P

Mechanical

Body Style
Enclosed
Cable Entry
Top/Bottom; 2 x M25 per side
Colour
Grey enclosure / grey side-operated handle
Material
Rigid polycarbonate enclosure
Mounting
Surface mounted enclosure
Connection/Termination
Screw terminals; 0.75 - 10 mm²

Dimensions & Physical Data

Depth
60mm
Height
130mm
Weight
0.31kg
Width
111mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1 & -3
Certifications / Approvals
CE
