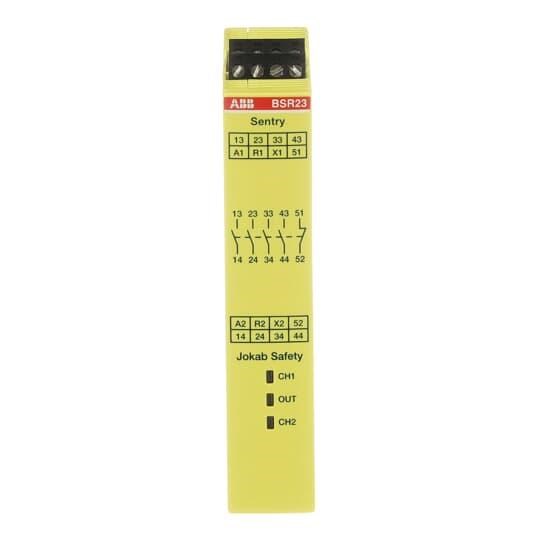

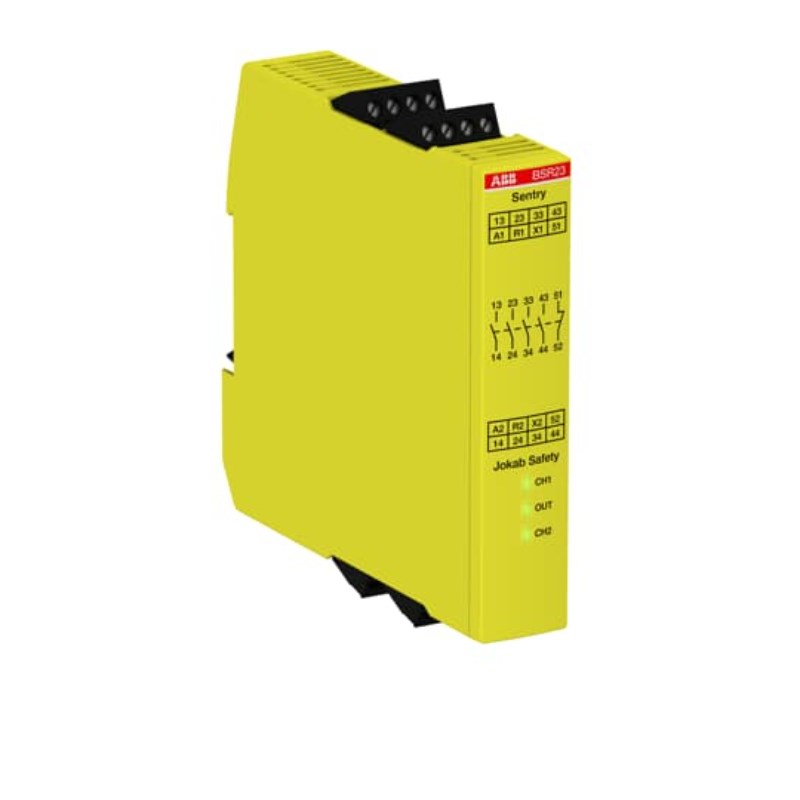

ABB BSR23 Safety Relay 24VDC 4NO+1NC

Product Code: BSR23

  • Operates at 24 VDC with 5 A current
  • Features 4NO+1NC contact config
  • Easy DIN Rail mounting
  • Compact size: 22.5mm width, 120mm height
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay
Brand
ABB
Series
Sentry (BSR23)

Electrical

Switching Current
5A to 6A
Switching Voltage
250V AC
Supply Voltage
24V DC

Mechanical

Housing Colour
Yellow

Dimensions & Physical Data

Depth
120mm
Height
120mm
Weight
0.195kg
Width
22.5mm

Environmental

IP Rating
IP20
Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Safe Relay Outputs, Stop 0
4 NO
Safety Integrity Level
SIL 3
Monitoring Circuit
No (expansion relay only)
Performance Level
Up to e
