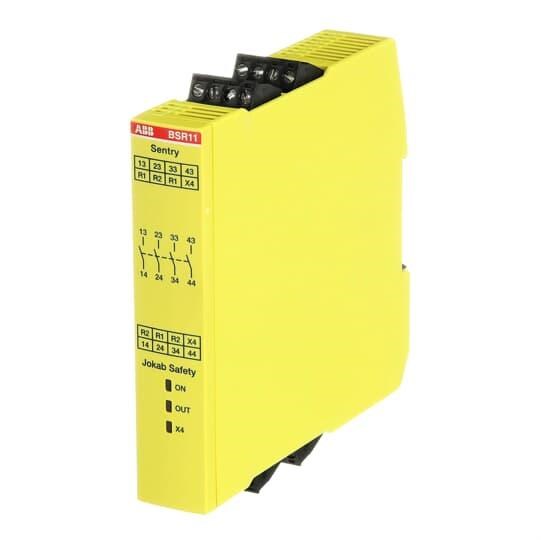

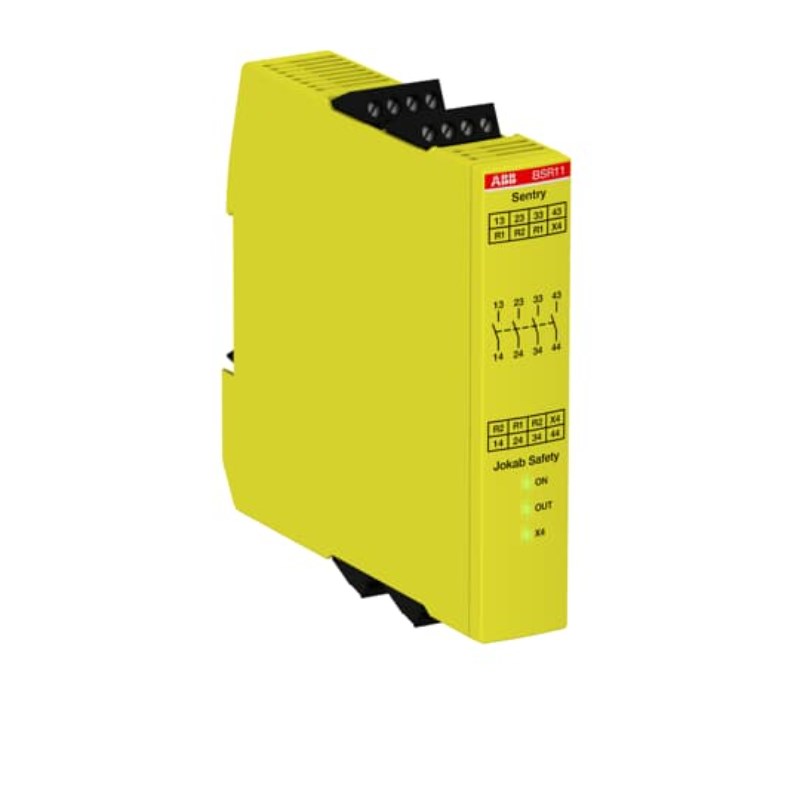

ABB BSR11 Safety Relay 24VDC 4NO

Product Code: BSR11

  • 24 VDC, 5 A rated for reliable performance
  • 4NO contact configuration for versatility
  • Easy DIN rail mounting system
  • IP20 protection against solid objects
  • Operates in -25 to 65°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay
Brand
ABB
Series
Sentry (BSR11)

Electrical

Switching Current
5A to 6A
Switching Voltage
250V AC
Supply Voltage
24V DC

Mechanical

Housing Colour
Yellow

Dimensions & Physical Data

Depth
120mm
Height
120mm
Weight
0.19kg
Width
22.5mm

Environmental

IP Rating
IP20
Ambient Temperature
-10°C to 55°C

Safety, Standards & Compliance

Safe Relay Outputs, Stop 0
4 NO
Safety Integrity Level
SIL 3
Monitoring Circuit
Emergency stop monitoring
Performance Level
Up to e
