Specifications

Product Type

Mini Contactor

Brand

ABB

No. of Poles (Total) 3	Rated Control Supply Voltage (Us) 24 V DC	Rated Operational Current AC-1 <= 440V (Ie) 40 °C 20 A
Rated Operational Current AC-1 <= 690V (Ie) 40 °C 6 A	Rated Operational Current AC-3 400V (Ie) 55 °C 9 A	Rated Operational Current AC-3 690V (Ie) NO 55°C 3.5 A
Rated Operational Power AC-3 400V (Pe) 5.5 kW	Rated Operational Power AC-3 690V (Pe) 3 kW	Rated Frequency 50/60 Hz main; DC control
No. of Auxiliary Contacts (NO/NC) 1 NO

Depth 46.5 mm	Height 57.5 mm	Weight 0.175 kg
Width 52.5 mm

Ambient Temperature

-25 ... +55 °C

Standards and Approvals

IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

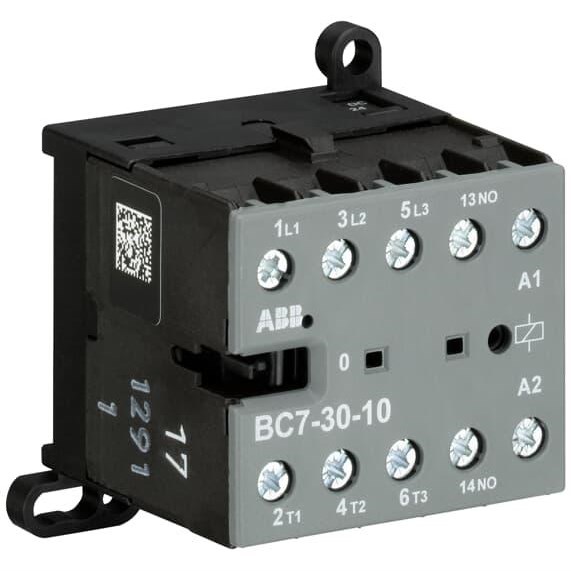

ABB BC7301001 Mini Contactor 3P 6A 5.5kW 24VAC Screw DIN Rail Wall Mount
